OD-05T067L
Small Diaphragm Pump 7Lpm Electrical BLDC Motor 12V/24V Gas Sampling Pump OD-05T067L
JSG OD-05T067L small diaphragm pump, 7 L/min, -85 kPa vacuum, 2.5 bar pressure. Brushless 12V/24V motor, oil-free, durable, OEM customizable.
Diaphragm air / vacuum pumpOD-05T067L30 technical parameters3 technical drawings
Product functions
Key functions
OD-05T067L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

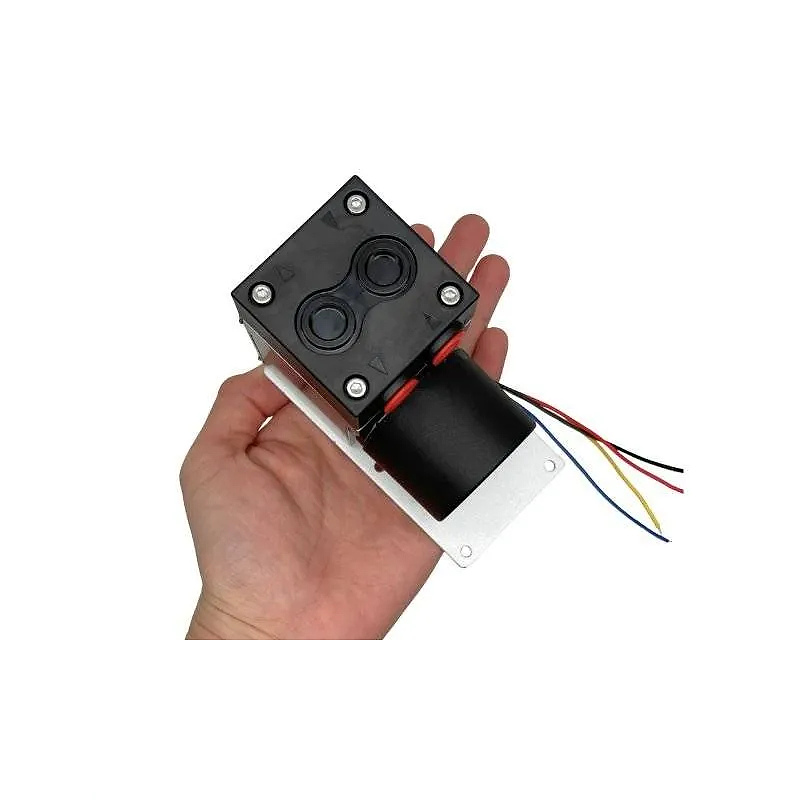

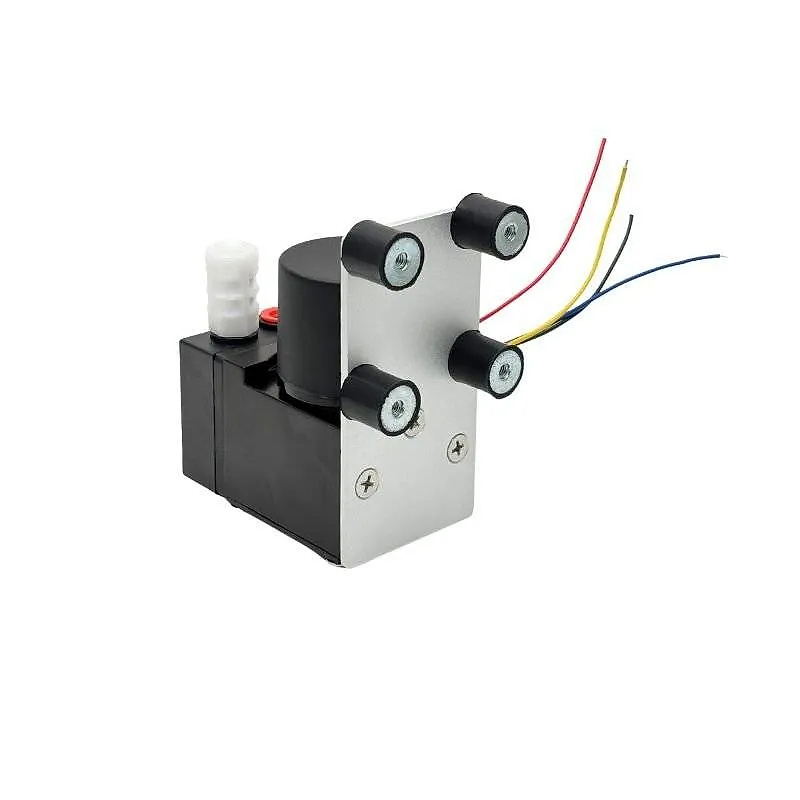

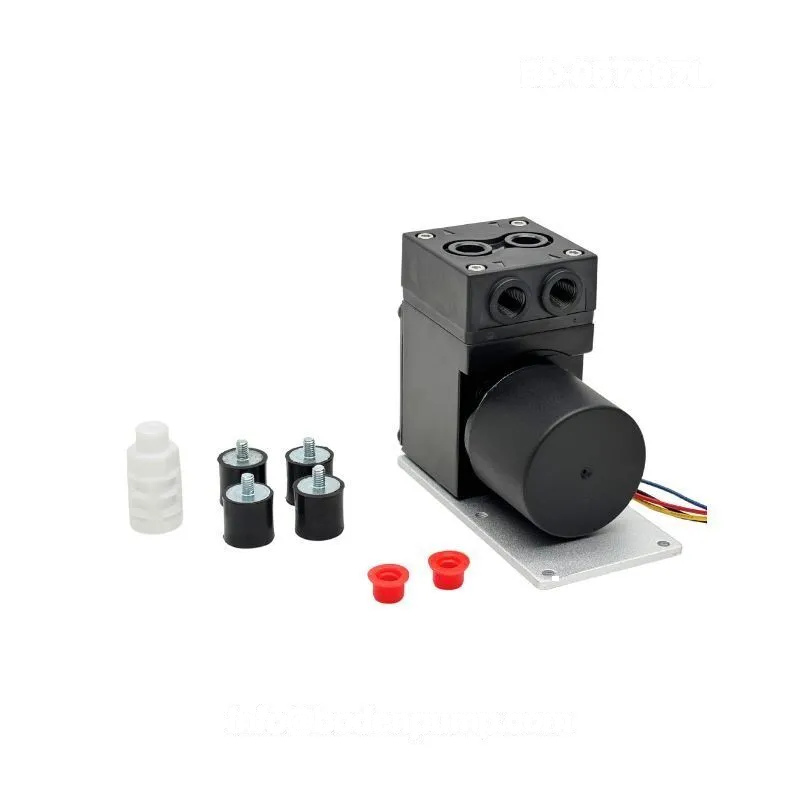

OD-05T067L product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T067L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow7L/min
Max Vacuum-85 kPa
Max Pressure2.5 Bar
MotorBrushless motor
Max Power20W
Weight370g
ParameterValue
ModelOD-05T067L
Voltage Range12 V / 24 V DC
Max Flow Rate7 L/min
Motor TypeBrushless DC (BLDC)
Max Power20 W
IP RatingIP20
Service Life>8,000 hours (continuous duty)
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature0 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L×W×H)80.5 × 46 × 77 mm
Weight370 g
ComponentMaterial / Performance
Pump HeadPPS - high strength, high-temperature resistant
Diaphragm/ValveEPDM (standard); FKM/PTFE available on request
Pump BodyEngineering plastic, durable
Customization AspectOptions Available
Diaphragm materialEPDM (standard), FKM, PTFE (customizable)
Electrical ConnectorCable length and plug type customizable
Branding & LabelsOEM logo and labeling options available
Pump ConfigurationBrushless motor; single-head layout
Integration SupportTechnical support for analyzer OEMs
Technical drawings

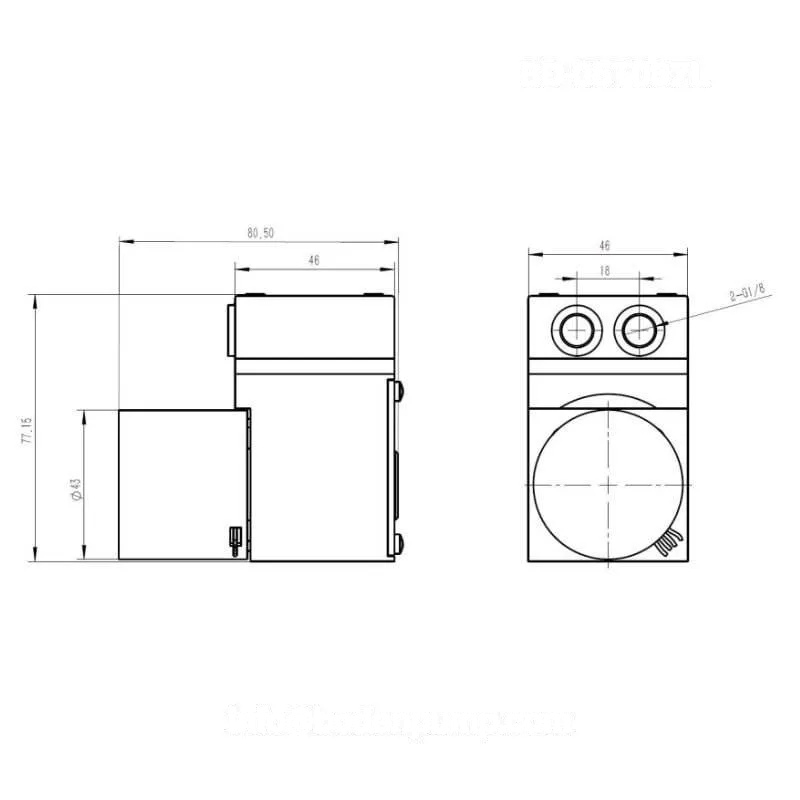

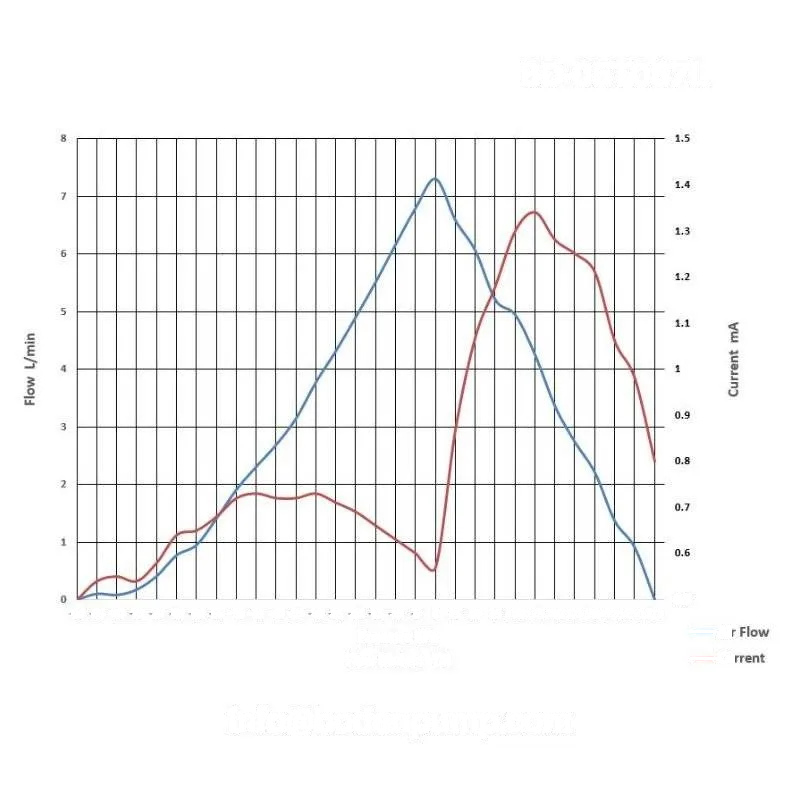

OD-05T067L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T067L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 7L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 2.5 Bar
Model comparison
OD-05T067L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T067L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 7L/min; Max Vacuum -85 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T067L series. For 3D files matched to OD-05T067L, include the current model in the RFQ.
OD-05T067L Wire Connection Guide
Locally synchronized file, 94 KB.
Download PDFOD-05T067L Small Diaphragm Pump
Locally synchronized file, 191 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T067L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
