OD-05TR15LB
Swing Piston Compressor 7 Bar 15 L/min Brushless High Pressure Micro Pump OD-05TR15LB | JSG
Brushless swing piston compressor with 15 L/min flow, 7 bar pressure, and -90 kPa vacuum. Ideal for OEM pneumatic, medical, and gas sampling applications.
Piston air / vacuum pumpOD-05TR15LB34 technical parameters2 technical drawings
Product functions
Key functions
OD-05TR15LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
White-background imagery

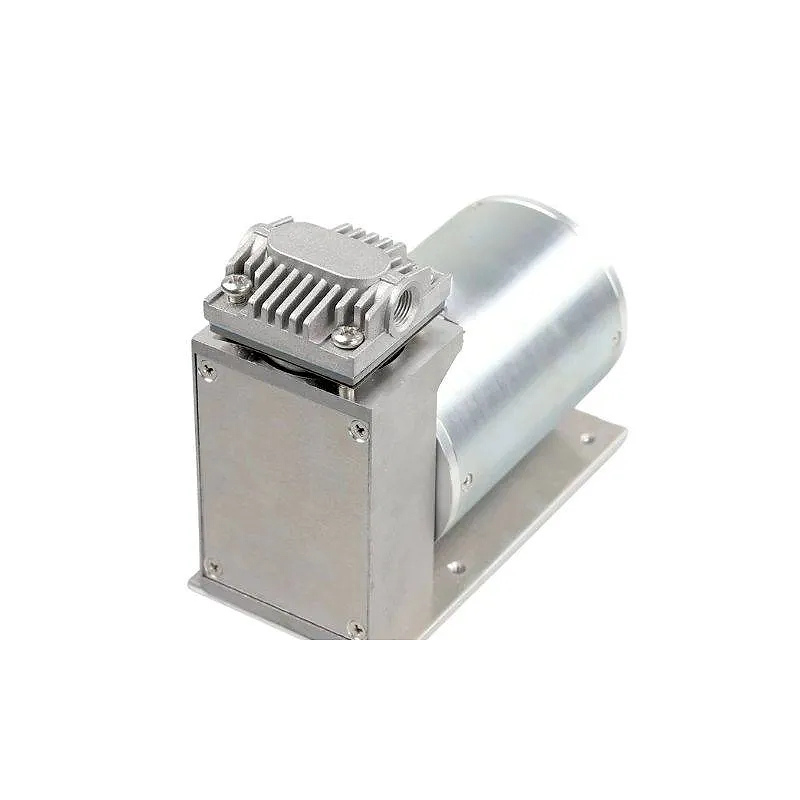

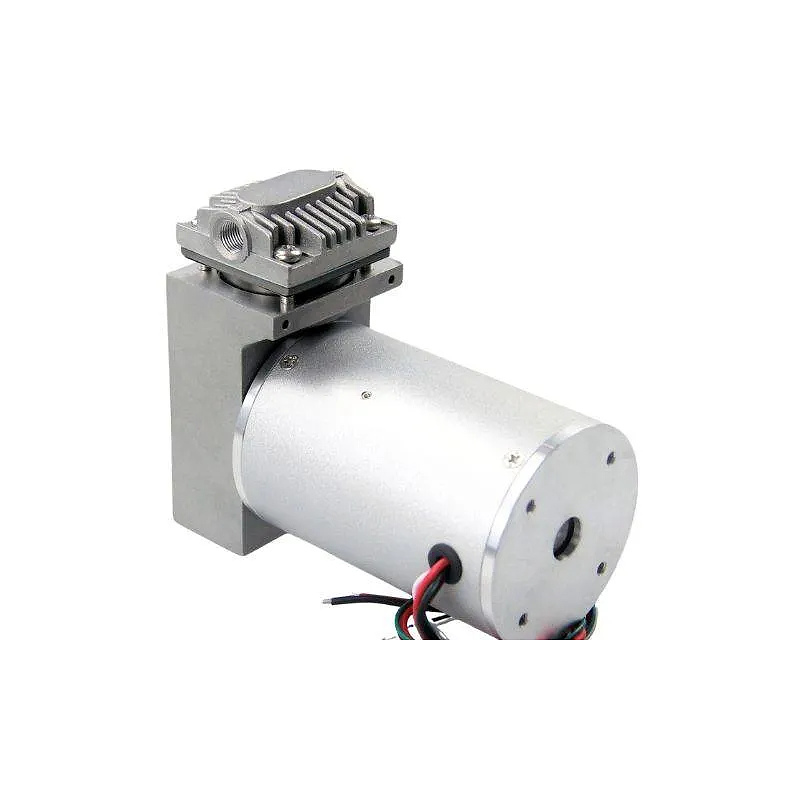

OD-05TR15LB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TR15LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24 V DC
Max Flow15 L/min
Max Vacuum-90 kPa
Max Pressure7 bar
MotorBrushless DC Motor
Power84 W
Weight1.6 kg
CategorySpecification
ModelOD-05TR15LB
TypeBLDC Air Compressor
StructureSwing Piston Compressor
Voltage Range24 V DC
Max Flow15 L/min (0.530 cfm)
Max Vacuum-90 kPa (-26.6 in.Hg / -900 mbar / -675 mmHg)
Max Pressure7 bar (101.5 psi / 7000 mbar / 0.7 MPa)
Motor TypeBrushless DC Motor
Max Load Current3.5 A
Service life>10,000 h under rated operating conditions
Dimensions124 × 65 × 107 mm (4.88 × 2.56 × 4.21 in)
Weight1.6 kg (3.53 lb)
Operating Ambient Temperature-20°C to 60°C
Operating Medium Temperature5°C to 40°C
ComponentMaterial / Feature
Pump HeadAluminum Alloy
Piston CupPTFE
ValveStainless Steel
OperationOil-free, dry-running capable
ItemCustomization Options
Motor TypeBrushed DC motor or brushless DC motor available
WiringCustom cable length and wire definition
ConnectorOpen leads, plug connectors, or OEM interface
Tubing InterfaceCustomized fittings or tubing connection support
MountingCustom bracket or installation structure support
BrandingPrivate label or customer-specific marking
Technical drawings

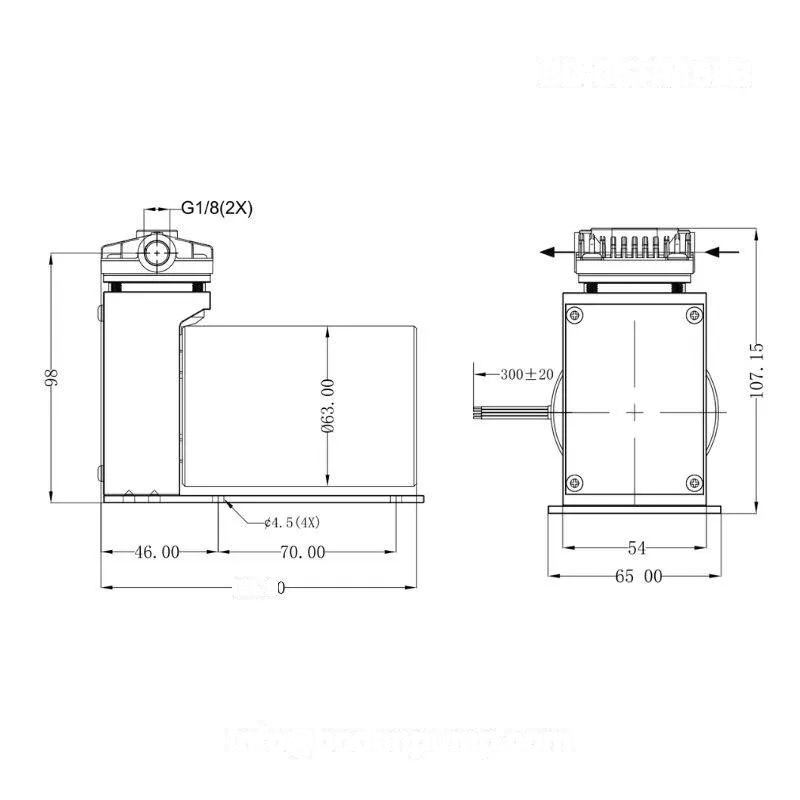

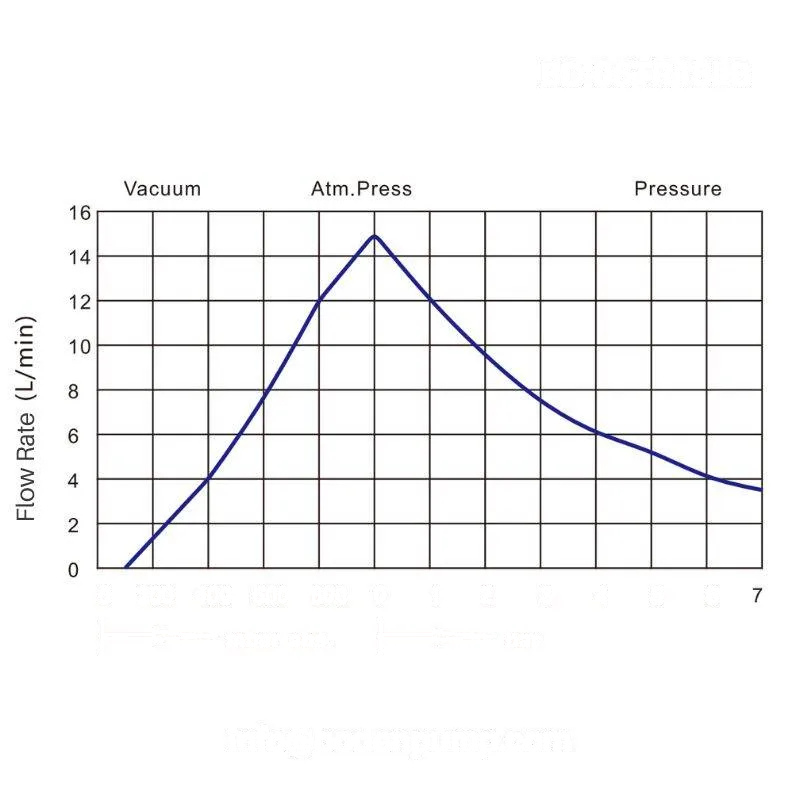

OD-05TR15LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR15LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- 24 V DC
- Max Flow
- 15 L/min
- Max Vacuum
- -90 kPa
- Max Pressure
- 7 bar
Model comparison
OD-05TR15LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR15LB | Piston air / vacuum pump | Voltage 24 V DC; Max Flow 15 L/min; Max Vacuum -90 kPa | Current model |
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | View model |
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TR15LB series. For 3D files matched to OD-05TR15LB, include the current model in the RFQ.
OD-05TR15LB Swing Piston Compressor Datasheet (PDF)
Locally synchronized file, 176 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TR15LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
