Application scenarios
Typical uses include compact air delivery, vacuum duty, sampling and equipment-level pneumatic functions where a piston architecture is preferred.
OD-05TR5L

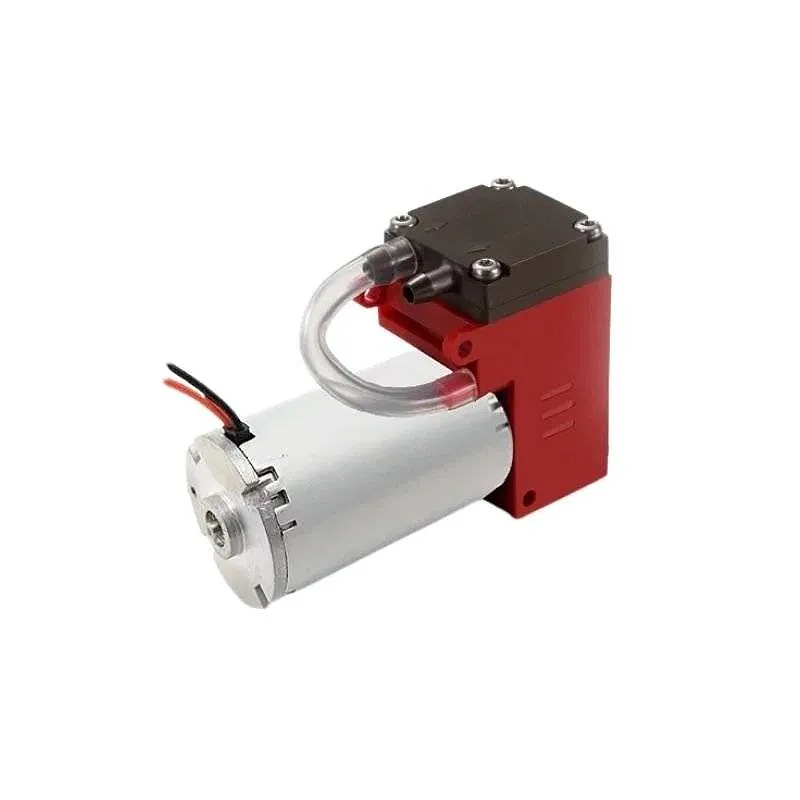

Swing Piston Gas Compressor Vacuum Pumps DC 2.3bar 5W -70kpa Mini Air Pump OD-05TR5L
The OD-05TR5L swing piston mini air compressor delivers 5 L/min flow, 2-3 bar pressure, and -70 kPa vacuum. Oil-free, compact, and ideal for gas detection, atomization, and high-pressure cleaning. OEM customization available from a trusted Chinese manufa
Piston air / vacuum pumpOD-05TR5L32 technical parameters2 technical drawings
Product functions
Key functions
OD-05TR5L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
Product data
Technical specifications
The following specifications apply to OD-05TR5L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow5L/min (float meter) / 3L/min (electronic meter)
Max Vacuum-70 kPa
Max Pressure2-3Bar
MotorHigh-end DC brushed motor
Max Power8W
Weight190g
ParameterValue
ModelOD-05TR5L
Voltage Range12 V / 24 V DC
Maximum Flow5 L/min (float meter) / 3 L/min (electronic meter)
Max Negative Pressure-70 kPa
Max Positive Pressure2-3 bar
Motor TypeHigh-end DC brushed motor
Max Power8 W
Waterproof LevelIP54
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-20 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions80 × 31 × 54 mm
ComponentMaterial / Performance
Pump HeadImported PPS - high corrosion resistance
ValveEPDM
Piston CupPTFE - high chemical durability
Pump BodyImported Polyamides - strong environmental resistance
Customization AspectAvailable Options
Voltage Options12 V / 24 V DC
Valve MaterialsEPDM (standard), FKM (optional)
Piston Cup MaterialPTFE (standard)
Cable & ConnectorCustom cable lengths and connector types
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustomized brackets, anti-vibration mounting solutions

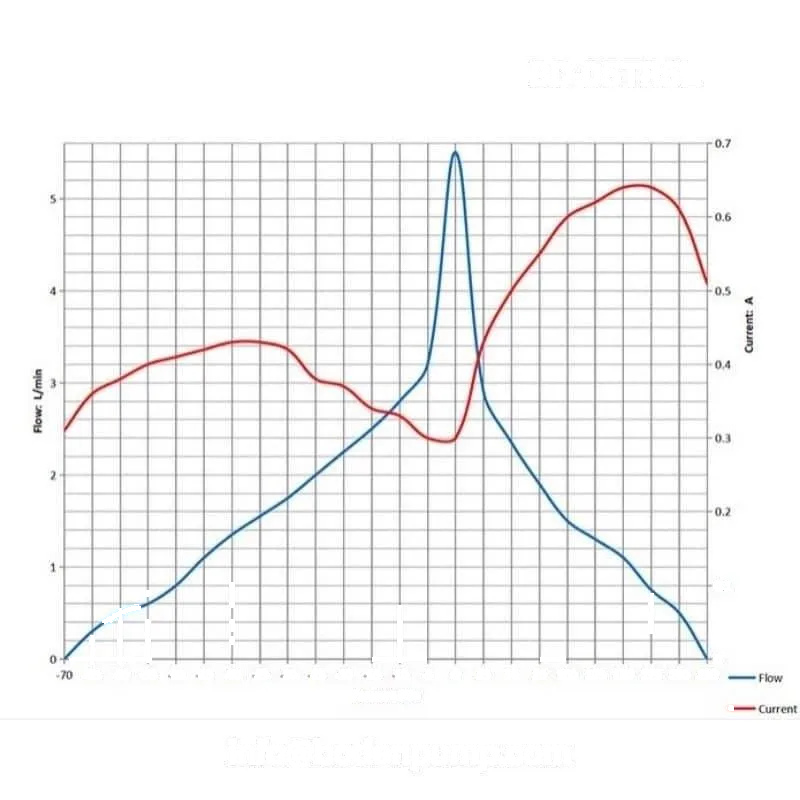

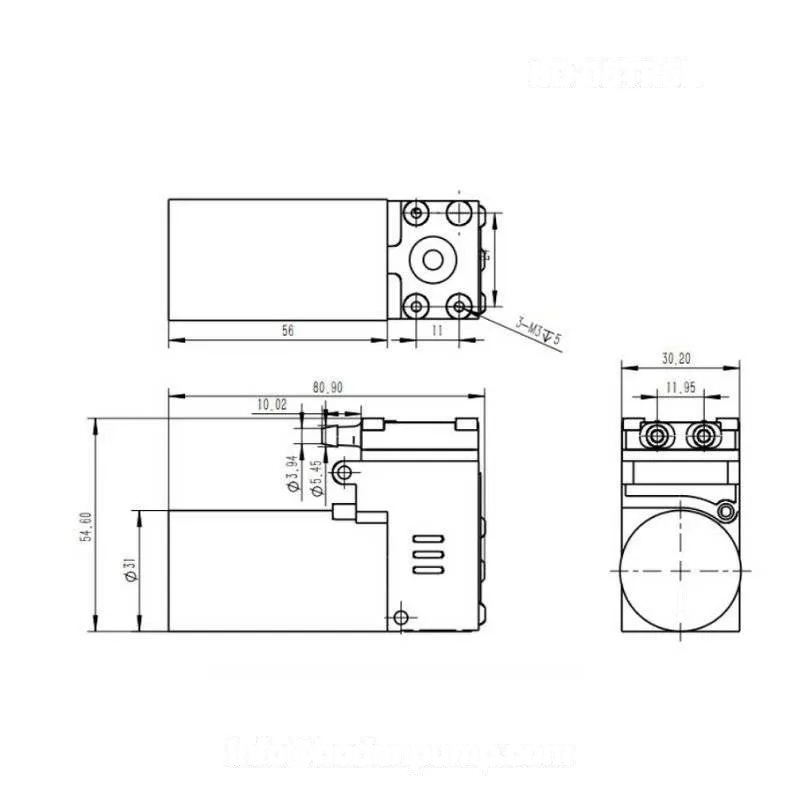

Technical drawings
OD-05TR5L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR5L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- 12V / 24V
- Max Flow
- 5L/min (float meter) / 3L/min (electronic meter)
- Max Vacuum
- -70 kPa
- Max Pressure
- 2-3Bar
Model comparison
OD-05TR5L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR5L | Piston air / vacuum pump | Voltage 12V / 24V; Max Flow 5L/min (float meter) / 3L/min (electronic meter); Max Vacuum -70 kPa | Current model |
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | View model |
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TR5L series. For 3D files matched to OD-05TR5L, include the current model in the RFQ.
OD-05TR5L Swing Piston Gas Compressor
Locally synchronized file, 193 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TR5L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
