Swing Piston Gas Pump 7 Bar 15 L/min Low Vibration Mini Compressor Pump OD-05TR15L | JSG

Name: Swing Piston Gas Pump 7 Bar 15 L/min Low Vibration Mini Compressor Pump OD-05TR15L | JSG
Brand: JSG
SKU: OD-05TR15L

Oil-free swing piston gas pump delivering 15 L/min flow, 7 bar pressure, and -90 kPa vacuum. Ideal for OEM pneumatic, medical, and gas sampling systems.

Piston air / vacuum pumpOD-05TR15L35 technical parameters2 technical drawings

View specifications Request this model

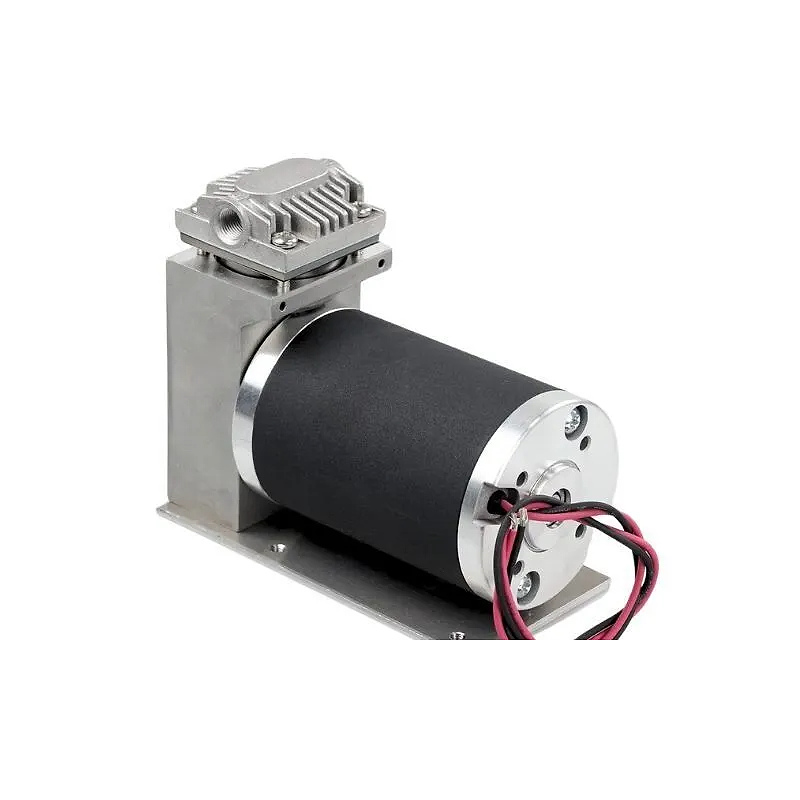

OD-05TR15L swing piston gas pump with brushless motor and metal pump head for OEM air compression systems

Product functions

Key functions

OD-05TR15L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.

Function 1Air delivery

Function 2Vacuum duty

Function 3Equipment integration

White-background imagery

OD-05TR15L product images

These images are served from the synchronized local product library as white-background product views.

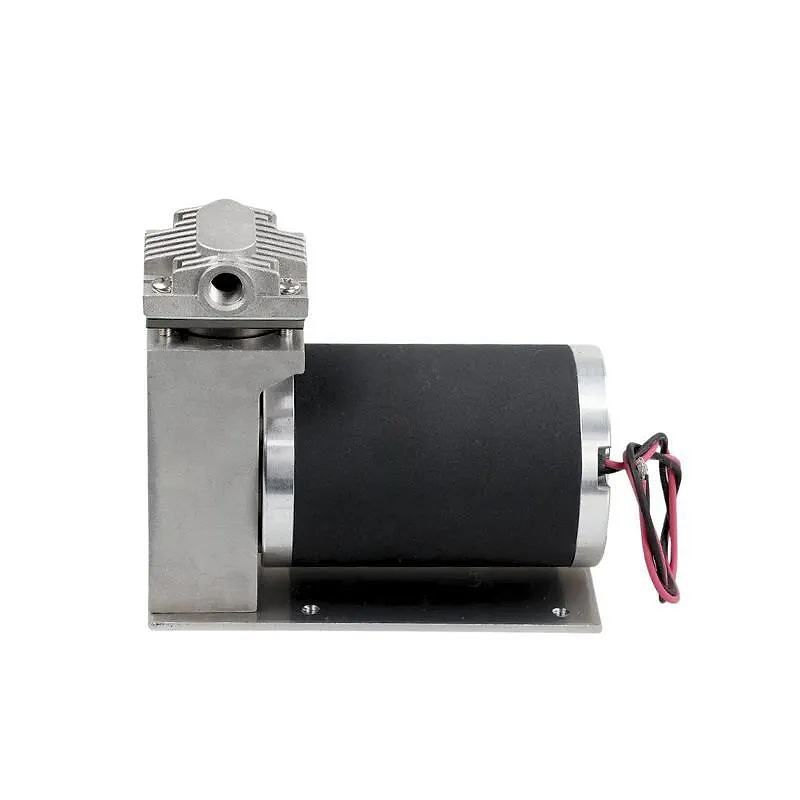

OD-05TR15L mini compressor pump side view with air port, metal head, and compact motor structure — Product view 2

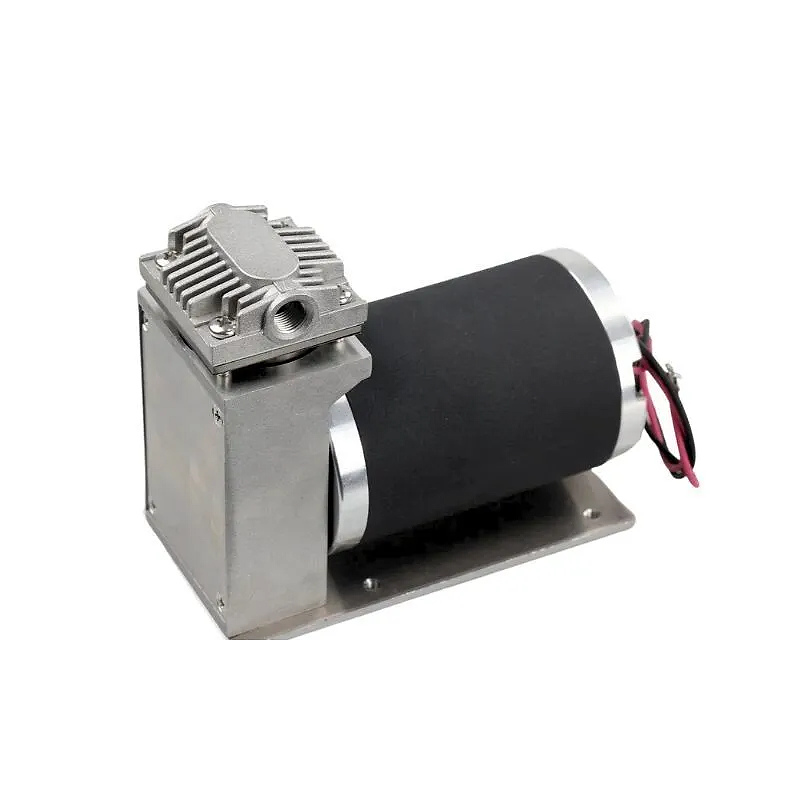

OD-05TR15L high pressure air pump with swing piston structure and mounting base for OEM pneumatic equipment — Product view 3

Product data

Technical specifications

The following specifications apply to OD-05TR15L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.

Voltage24 V DC

Max Flow15 L/min

Max Vacuum-90 kPa

Max Pressure7 bar

MotorBrushless DC Motor

Max Power65 W

Weight1.6 kg

CategorySpecification

ModelOD-05TR15L

TypeMicro Air Pump

StructureSwing Piston Gas Pump

Voltage Range24 V DC

Max Flow15 L/min (0.530 cfm)

Max Vacuum-90 kPa (-26.6 in.Hg / -900 mbar / -675 mmHg)

Max Pressure7 bar (101.5 psi / 7000 mbar / 0.7 MPa)

Motor TypeBrush DC Motor

Max Load Current2.6 A

Power65 W

Service life>3,000 h under rated operating conditions

Dimensions129 × 65 × 107 mm (5.08 × 2.56 × 4.21 in)

Weight1.6 kg (3.53 lb)

Operating Ambient Temperature-20°C to 60°C

Operating Medium Temperature5°C to 40°C

ComponentMaterial / Feature

Pump HeadAluminum Alloy

Piston CupPTFE

ValveStainless Steel

OperationOil-free, dry-running capable

ItemCustomization Options

Motor TypeBrushed DC motor or brushless DC motor available

WiringCustom cable length and wire definition

ConnectorOpen leads, plug connectors, or OEM interface

Tubing InterfaceCustomized fittings or tubing connection support

MountingCustom bracket or installation structure support

BrandingPrivate label or customer-specific marking

Technical drawings

OD-05TR15L dimensions and performance graphics

Images classified as dimensional drawings, specification graphics or performance curves are grouped here.

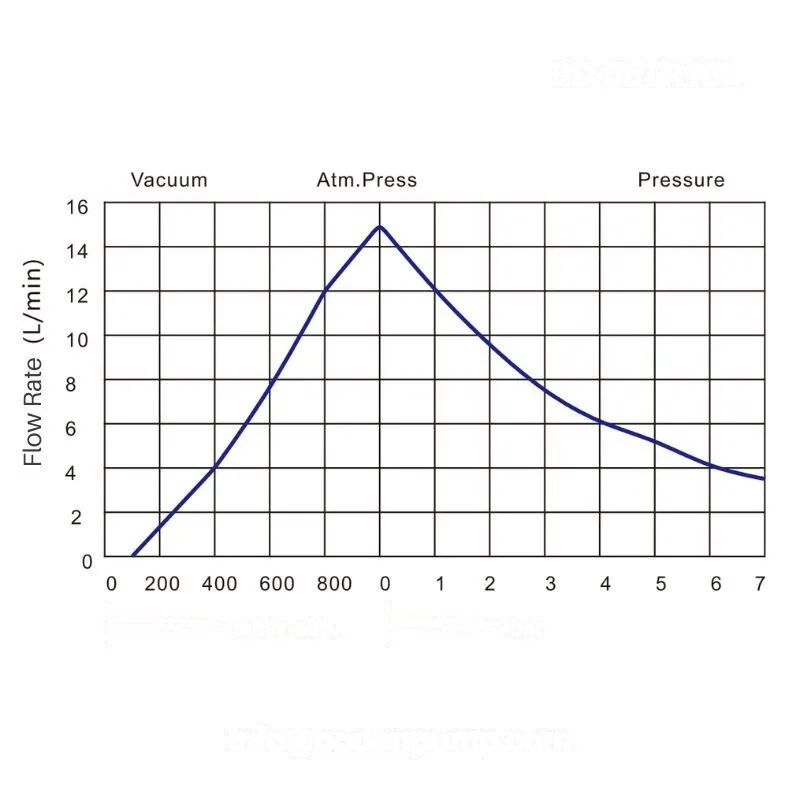

OD-05TR15L air pump flow rate curve showing vacuum, atmospheric pressure, and pressure performance — Technical drawing 1

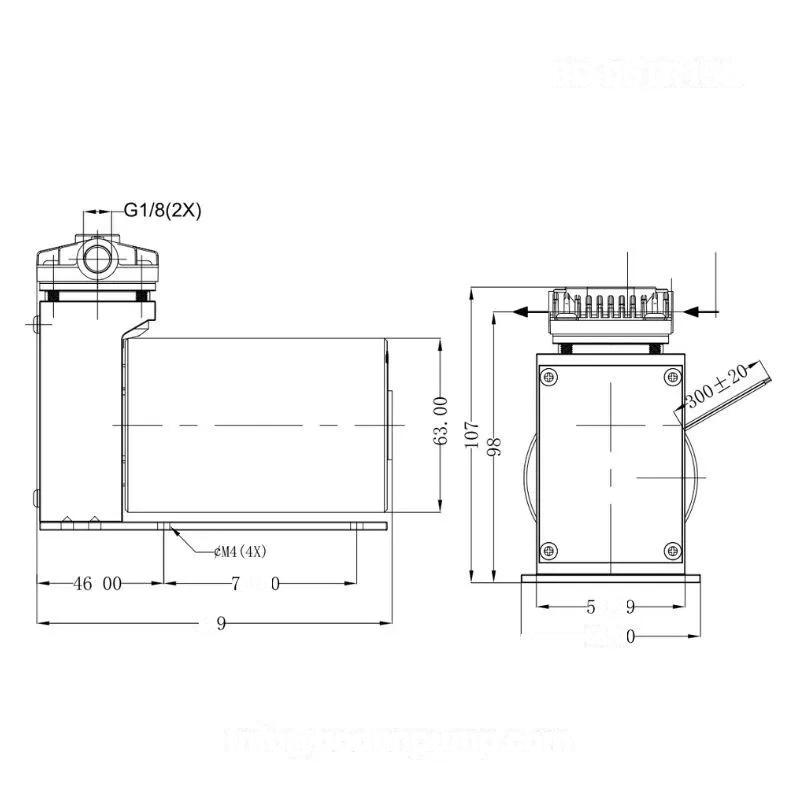

OD-05TR15L swing piston gas pump dimension drawing with mounting base, air port, and overall size — Technical drawing 2

Application and configuration

OD-05TR15L application fit

Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.

Application scenarios

Typical uses include compact air delivery, vacuum duty, sampling and equipment-level pneumatic functions where a piston architecture is preferred.

Working-point review

Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.

Noise, lifetime and voltage

Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.

Voltage: 24 V DC
Max Flow: 15 L/min
Max Vacuum: -90 kPa
Max Pressure: 7 bar

Model comparison

OD-05TR15L and nearby alternatives

When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.

Model	Category	Key specifications	Next action
OD-05TR15L	Piston air / vacuum pump	Voltage 24 V DC; Max Flow 15 L/min; Max Vacuum -90 kPa	Current model
OD-079A-M / OD-079V-M	Piston air / vacuum pump	Voltage 24V; Air flow 30-50L/min; Pressure 7bar	View model
OD-07A / OD-07V	Piston air / vacuum pump	Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar	View model
OD-07A-M / OD-07V-M	Piston air / vacuum pump	Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar	View model
