OD-05TR5LB
Swing Piston Gas Pump 5.5Lpm 8k Longlife Brushless dc air compressor OD-05TR5LB
High-efficiency OD-05TR5LB swing piston gas pump with 5.5 L/min flow, 2-3 bar pressure, -70 kPa vacuum, low noise, and oil-free maintenance for industrial and medical use.
Piston air / vacuum pumpOD-05TR5LB32 technical parameters2 technical drawings
Product functions
Key functions
OD-05TR5LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
White-background imagery

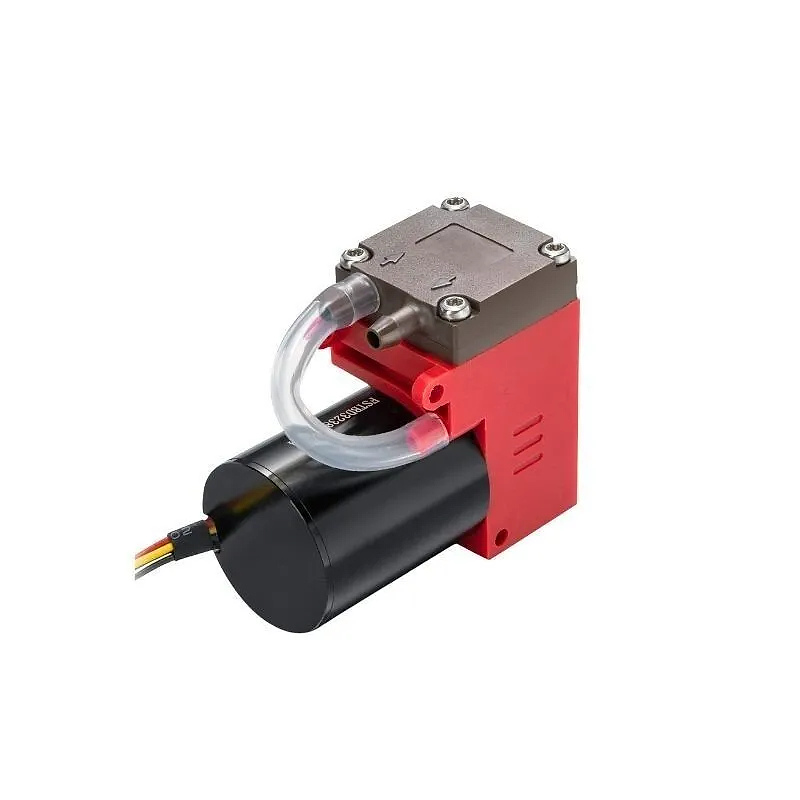

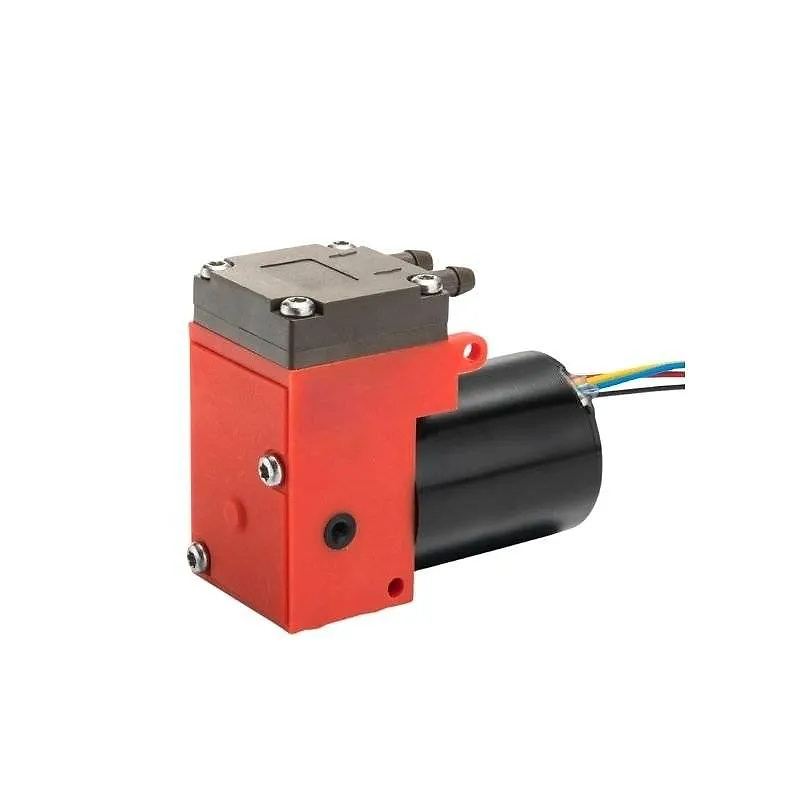

OD-05TR5LB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TR5LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow5.5L/min
Max Vacuum-70 kPa
Max Pressure2-3Bar
MotorBrushless DC motor
Max Power8W
Weight153g
ParameterValue
ModelOD-05TR5LB
Voltage Range12 V / 24 V
Maximum Flow5.5 L/min
Max Negative Pressure-70 kPa
Max Positive Pressure2-3 bar
Motor TypeBrushless DC motor
Max Power8 W
Waterproof LevelIP00
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-20 ℃ ~ 50 ℃
Dimensions (L×W×H)80 × 31 × 54 mm
Weight153 g
ComponentMaterial / Performance
Pump HeadImported PPS - high strength and corrosion resistance
ValveEPDM / FKM - chemical compatibility for various gases
Piston CupPTFE - durable, oil-free, and maintenance-free
Pump BodyPPS - compact, high-strength, and corrosion-resistant body
Customization AspectAvailable Options
Voltage Options12 V / 24 V DC
Valve MaterialsEPDM (standard), FKM (optional)
Piston Cup MaterialPTFE (standard)
Cable & ConnectorCustom lengths and connector types
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustomized brackets, anti-vibration solutions
Technical drawings

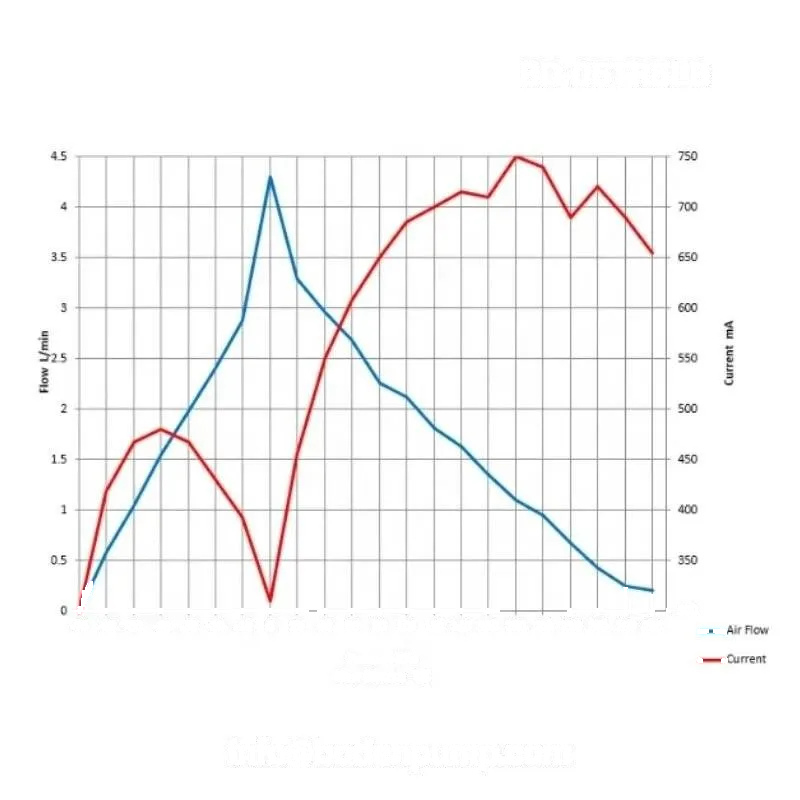

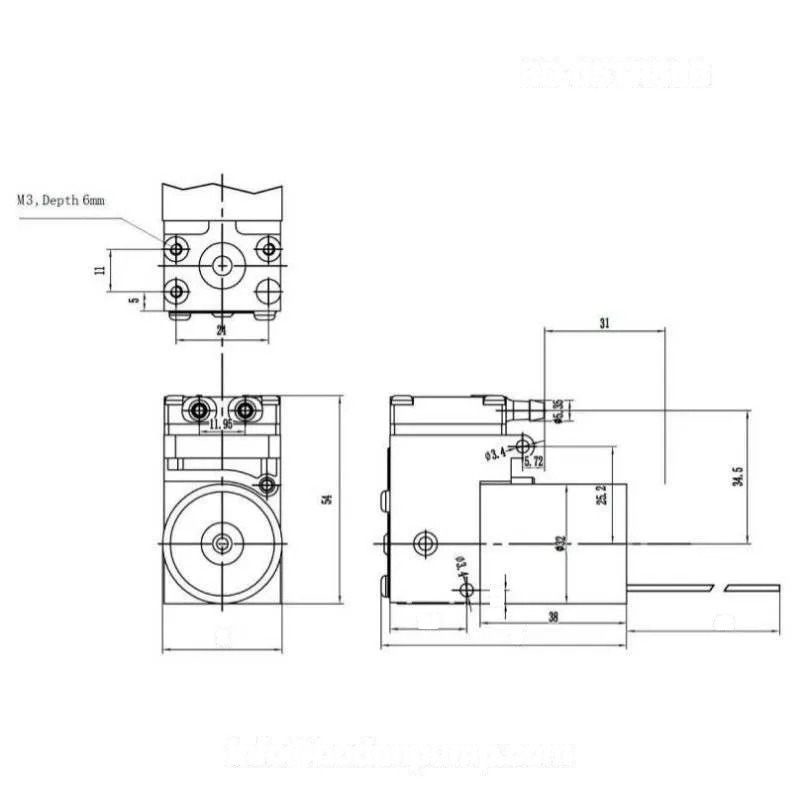

OD-05TR5LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR5LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- 12V / 24V
- Max Flow
- 5.5L/min
- Max Vacuum
- -70 kPa
- Max Pressure
- 2-3Bar
Model comparison
OD-05TR5LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR5LB | Piston air / vacuum pump | Voltage 12V / 24V; Max Flow 5.5L/min; Max Vacuum -70 kPa | Current model |
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | View model |
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TR5LB series. For 3D files matched to OD-05TR5LB, include the current model in the RFQ.
OD-05TR5LB Swing Piston Gas Pump
Locally synchronized file, 179 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TR5LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
