Swing Piston Pump 30 L/min 7 Bar Twin Head Micro Compressor OD-05TR30LB | JSG

Name: Swing Piston Pump 30 L/min 7 Bar Twin Head Micro Compressor OD-05TR30LB | JSG
Brand: JSG
SKU: OD-05TR30LB

Swing piston pump with 30 L/min airflow, 7 bar pressure, and -90 kPa vacuum. Twin-head brushless compressor for medical, gas sampling, and OEM pneumatic systems.

Piston air / vacuum pumpOD-05TR30LB37 technical parameters2 technical drawings

View specifications Request this model

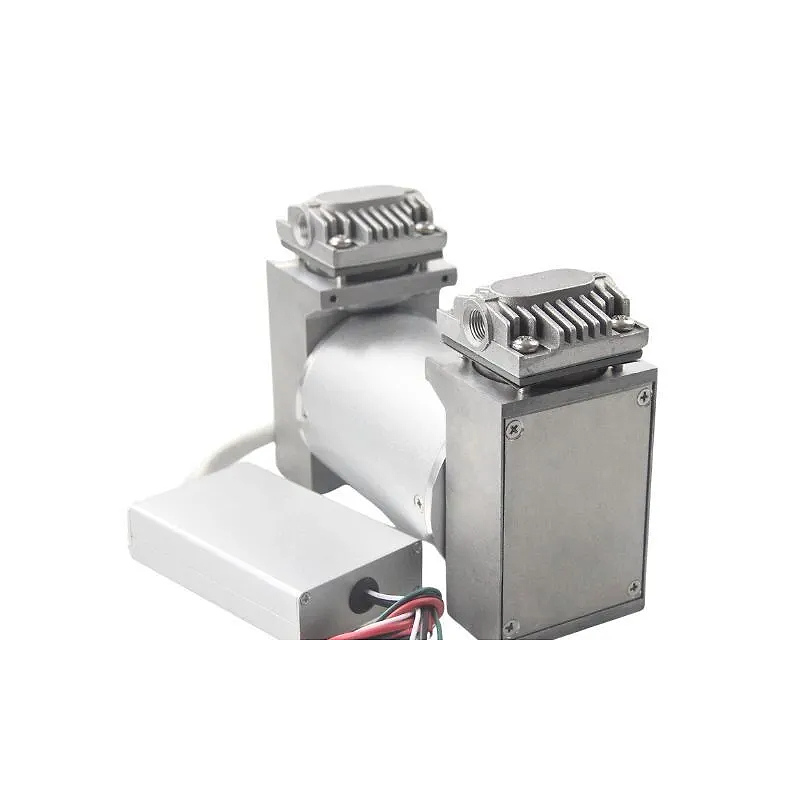

OD-05TR30LB dual-head swing piston compressor with brushless motor and metal pump heads for OEM air systems

Product functions

Key functions

OD-05TR30LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.

Function 1Air delivery

Function 2Vacuum duty

Function 3Equipment integration

White-background imagery

OD-05TR30LB product images

These images are served from the synchronized local product library as white-background product views.

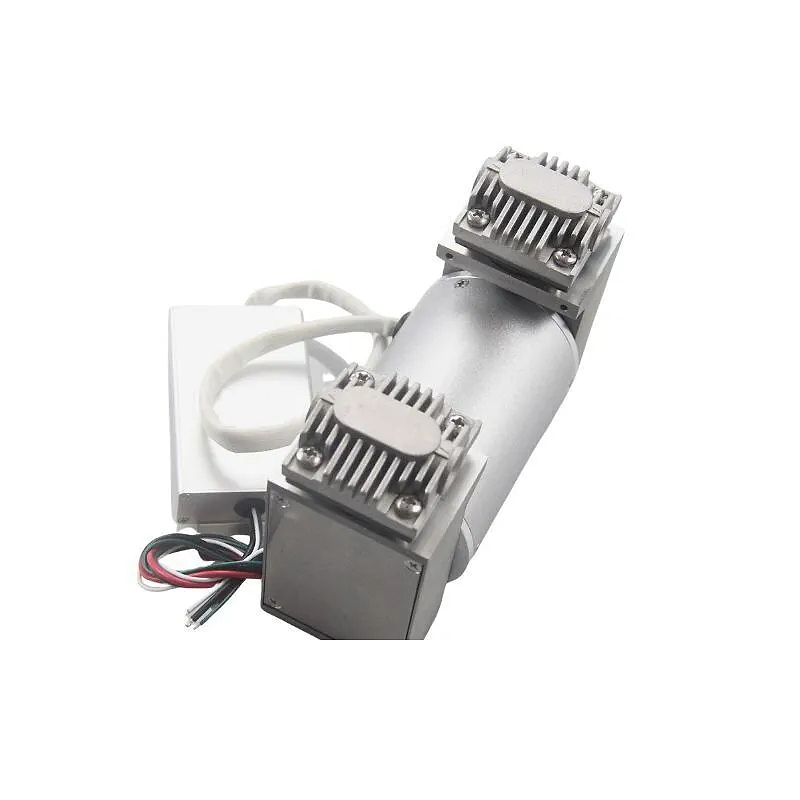

OD-05TR30LB double-head air compressor with aluminum pump heads, tubing, and compact motor structure — Product view 2

Product data

Technical specifications

The following specifications apply to OD-05TR30LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.

Voltage24 V DC

Max Flow30 L/min

Max Vacuum-90 kPa

Max Pressure7 bar

MotorBrushless DC Motor

Power130 W

Weight1.8 kg

CategorySpecification

ModelOD-05TR30LB

TypeDouble Head Air Pump

StructureTwin-Head Swing Piston Pump

Voltage Range24 V DC

Max Flow30 L/min (1.059 cfm)

Max Vacuum-90 kPa (-26.6 in.Hg / -900 mbar / -675 mmHg)

Max Pressure7 bar (101.5 psi / 7000 mbar / 0.7 MPa)

Motor TypeBrushless DC Motor

Max Load Current5.5 A

Service life>10,000 h under rated operating conditions

Dimensions156 × 54 × 104 mm (6.14 × 2.13 × 4.09 in)

Weight1.8 kg (3.97 lb)

Operating Ambient Temperature-20°C to 60°C

Operating Medium Temperature5°C to 40°C

ComponentMaterial / Feature

Pump HeadAluminum Alloy

Piston CupPTFE

ValveStainless Steel

OperationOil-free, dry-running capable

ItemCustomization Options

WiringCustom cable length and wire definition

ConnectorOpen leads, plug connectors, or OEM interface

Tubing InterfaceCustomized fittings or tubing connection support

MountingCustom bracket or installation structure support

BrandingPrivate label or customer-specific marking

TypeVoltage | Model | Max Flow | Max Pressure | Max Vacuum

Single-Head Swing Piston Compressor24 V DC | OD-08AB-S | 45 L/min | 7 bar | -85 kPa

Single-Head Swing Piston Compressor24 V DC | OD-05TR15LB | 15 L/min | 7 bar | -90 kPa

Double-Head Swing Piston Compressor24 V DC | OD-05TR32L | 32 L/min | 8-10 bar | -85 kPa

Technical drawings

OD-05TR30LB dimensions and performance graphics

Images classified as dimensional drawings, specification graphics or performance curves are grouped here.

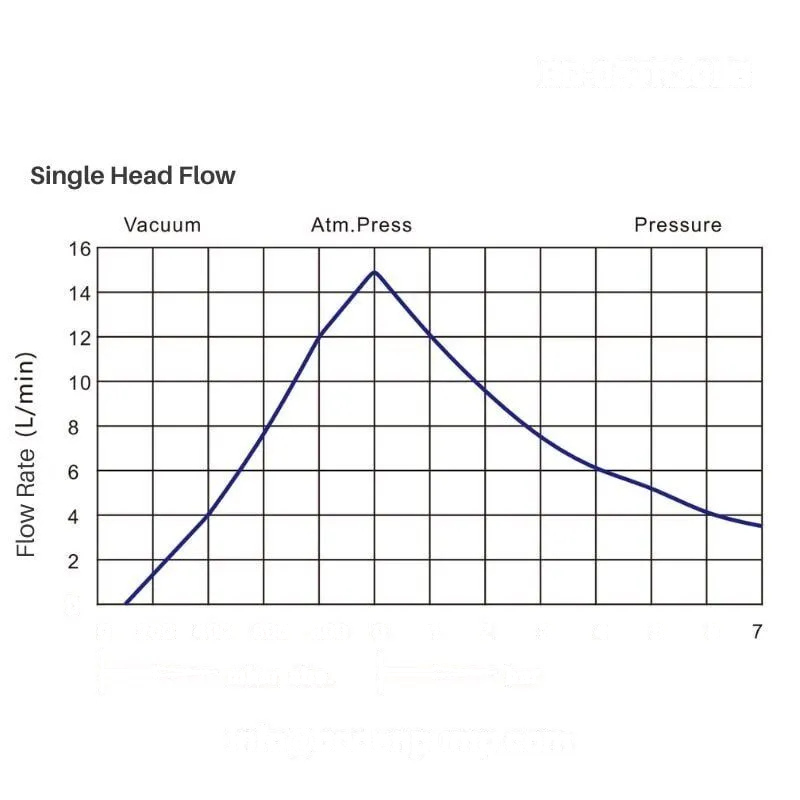

OD-05TR30LB single head flow rate curve showing vacuum, atmospheric pressure, and pressure performance — Technical drawing 1

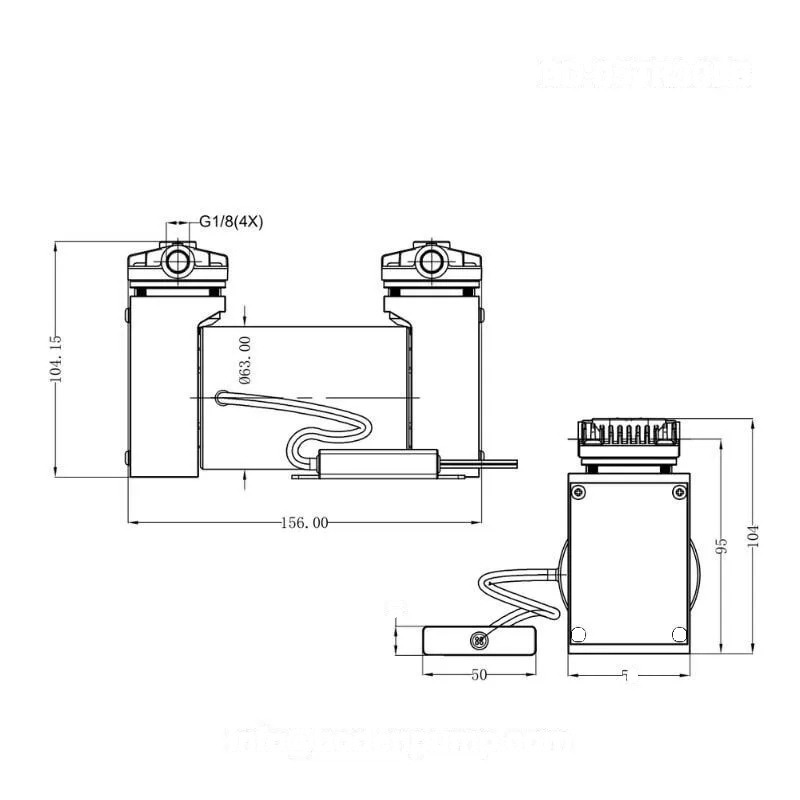

OD-05TR30LB dual-head swing piston compressor dimension drawing with air ports, motor body, and mounting layout — Technical drawing 2
