Application scenarios
Typical uses include water-based liquid transfer, dosing, recirculation and compact fluid handling in instruments or OEM equipment.
OD-05TF600W
12V Liquid Pump 600mL/min 7W Wide Format Printer Pump OD-05TF600W JSG
12V 600mL/min liquid pump for wide format printers, analyzers, and OEM fluid systems. Compact diaphragm pump with self-priming and gas-liquid capability.
Diaphragm liquid pumpOD-05TF600W38 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF600W supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
White-background imagery

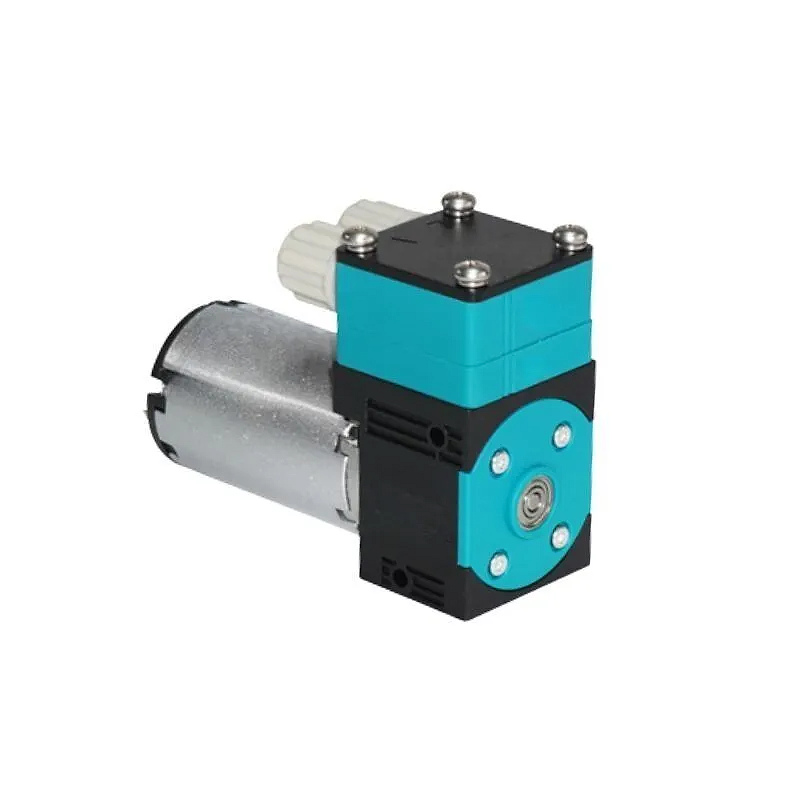

OD-05TF600W product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF600W. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 / 12 / 24 V DC
Max Flow600 mL/min (water), 4 L/min (gas)
Max Vacuum-78 kPa
Max Pressure2.5 bar (water), 1 bar (gas)
MotorDC Brush Motor
Max Power7 W
Weight200 g
ModelOD-05TF600W
TypeSmall Liquid Pump
StructureSingle-head Diaphragm Pump
Voltage Range6 V / 12 V / 24 V DC
Free Water Flow600 mL/min (0.158 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head7 m
Free Gas Flow4 L/min (0.141 cfm)
Max Gas Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Max Gas Vacuum-78 kPa (-23 in.Hg / -780 mbar / -585 mmHg)
Motor TypeDC Brush Motor
Noise50 dB
Service life3000 h
Dimensions82.6 × 31.1 × 58.1 mm (3.25 × 1.22 × 2.29 in)
Weight200 g(0.44 lb)
Recommended Tubing SizeID 4 mm, OD 6 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66
DiaphragmEPDM
ValveEPDM
Customization ItemAvailable Options / Adjustment
Voltage6 V / 12 V / 24 V DC
MaterialsPump head, diaphragm, and valve material upgrades available (e.g., PA, EPDM)
WiringCustom length and termination options
ConnectorOEM-specific electrical connectors available
TubingID/OD sizing adjustment based on system requirements
BrandingPrivate label / OEM branding support
MountingCustom mounting structure available

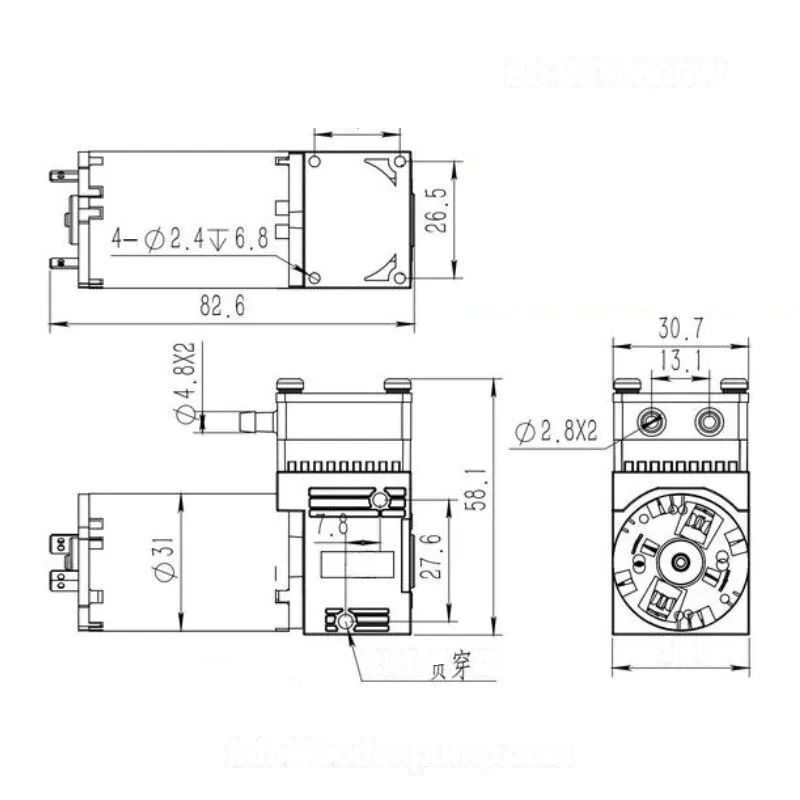

Technical drawings
OD-05TF600W dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF600W application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 / 12 / 24 V DC
- Max Flow
- 600 mL/min (water), 4 L/min (gas)
- Max Vacuum
- -78 kPa
- Max Pressure
- 2.5 bar (water), 1 bar (gas)
Model comparison
OD-05TF600W and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | Current model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
| OD-05TF600WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TF600W series. For 3D files matched to OD-05TF600W, include the current model in the RFQ.
OD-05TF600W Small Liquid Pump Datasheet (PDF)
Locally synchronized file, 150 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TF600W series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm liquid pump
12V Liquid Pump 800mL/min 290g Diaphragm Pump 24V OD-05TF800WBD JSG
View product
Diaphragm liquid pump

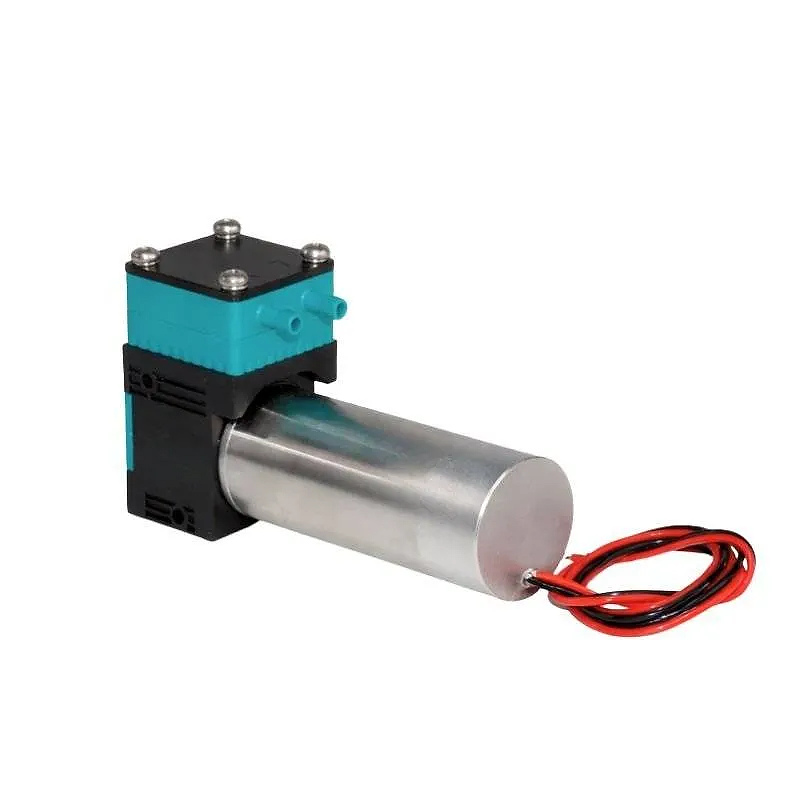

24V Liquid Pump 600 mL/min 7 W Ink Circulation Pump OD-05TF600WB JSG
View productRequest a quote for OD-05TF600W
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
