Application scenarios
Typical uses include water-based liquid transfer, dosing, recirculation and compact fluid handling in instruments or OEM equipment.
OD-05TF600WB
24V Liquid Pump 600 mL/min 7 W Ink Circulation Pump OD-05TF600WB JSG
24V 600mL/min brushless liquid pump for ink circulation, printers, analyzers, and OEM fluid systems. Compact diaphragm pump with long-life operation.
Diaphragm liquid pumpOD-05TF600WB42 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF600WB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
White-background imagery

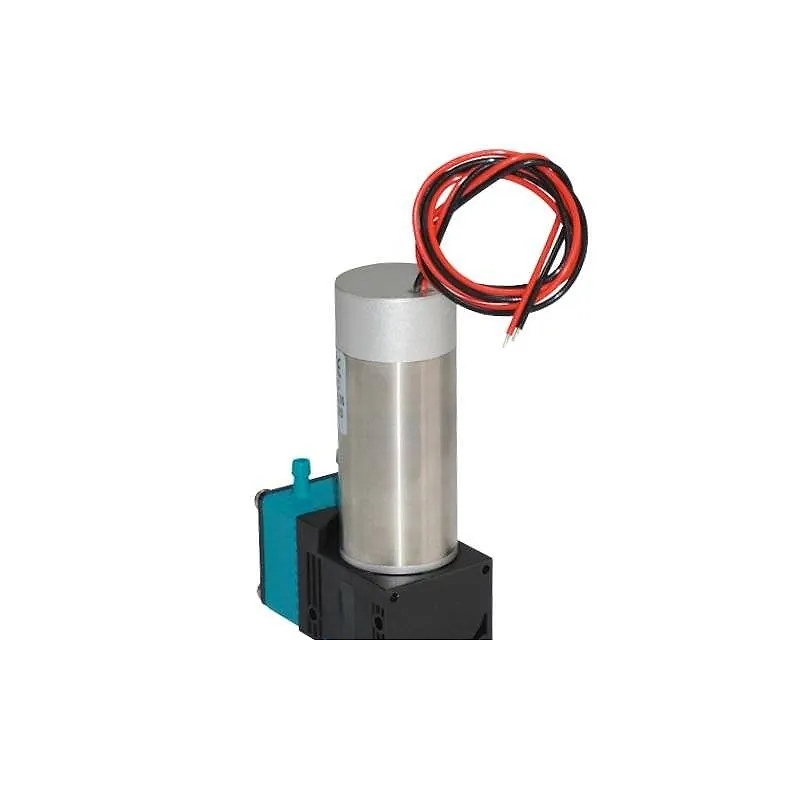

OD-05TF600WB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF600WB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 V / 12 V / 24 V DC
Max Flow600 mL/min (water), 4 L/min (gas)
Max Vacuum-60 kPa
Max Pressure2.5 bar (water), 1 bar (gas)
MotorDC Brushless Motor
Max Power7 W
Weight240 g
ModelOD-05TF600WB
TypeSmall Liquid Pump
StructureDiaphragm Pump
Voltage Range6 V / 12 V / 24 V DC
Free Water Flow600 mL/min (0.158 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head7 m
Free Gas Flow4 L/min (0.141 cfm)
Max Gas Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Max Gas Vacuum-60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg)
Motor TypeDC Brushless Motor
Noise55 dB
Service life10000 h
Dimensions94 × 31.1 × 58.1 mm (3.70 × 1.22 × 2.29 in)
Weight240 g(0.53 lb)
Recommended Tubing SizeID 4 mm, OD 6 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66
DiaphragmEPDM
ValveEPDM
Wetted PartsPA + EPDM + EPDM
ItemCustomization Options
Voltage6 V / 12 V / 24 V DC selectable to match different system power architectures
Motor TypeBrushless (long life) or brushed (cost-optimized) options depending on project stage
MaterialsStandard PA66 + EPDM, with optional PPS, PTFE, and FFPM for enhanced chemical resistance
WiringCustom wire length, color, and harness structure for simplified system connection
ConnectorBare wire, terminal, or waterproof connector to match electrical interface requirements
TubingID 4 mm / OD 6 mm standard, with optional size adjustment for system compatibility
MountingCustomized mounting brackets or hole patterns to fit different equipment layouts
Control SignalPWM or analog control available for system-level flow or speed adjustment
Performance TuningFlow and pressure can be adjusted within a defined range to match application requirements
BrandingOEM labeling and private branding for end-product consistency

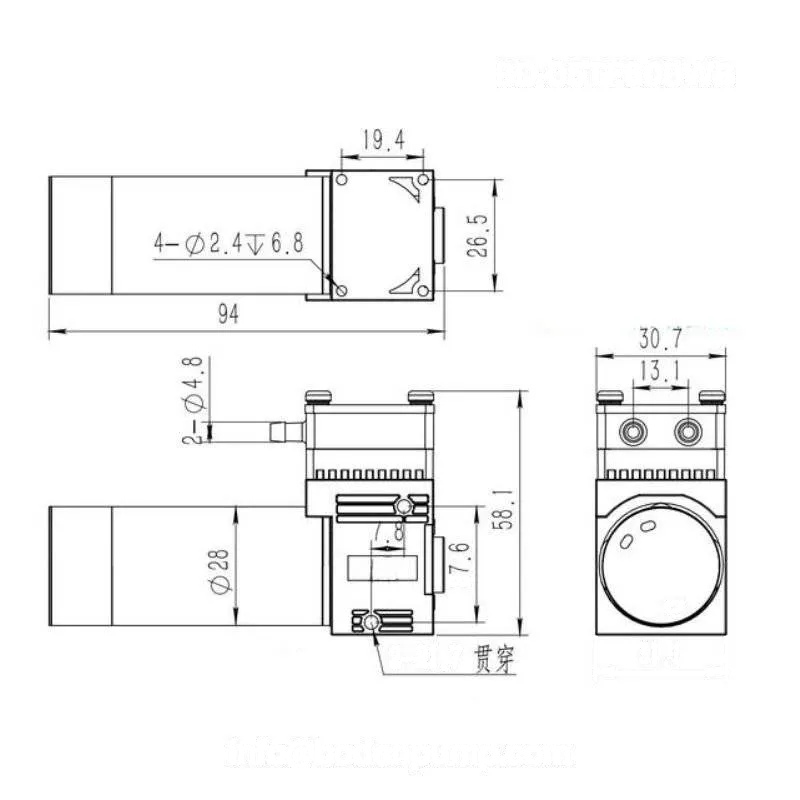

Technical drawings
OD-05TF600WB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF600WB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 V / 12 V / 24 V DC
- Max Flow
- 600 mL/min (water), 4 L/min (gas)
- Max Vacuum
- -60 kPa
- Max Pressure
- 2.5 bar (water), 1 bar (gas)
Model comparison
OD-05TF600WB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF600WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TF600WB series. For 3D files matched to OD-05TF600WB, include the current model in the RFQ.
OD-05TF600WB Micro Liquid Pump Specification (PDF)
Locally synchronized file, 152 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TF600WB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
