Application scenarios
Typical uses include water-based liquid transfer, dosing, recirculation and compact fluid handling in instruments or OEM equipment.
OD-05TF800WBD
12V Liquid Pump 800mL/min 290g Diaphragm Pump 24V OD-05TF800WBD JSG
12V/24V diaphragm liquid pump with 800mL/min flow, brushless DC motor, PWM speed control, and gas-liquid compatibility for OEM fluid handling systems.
Diaphragm liquid pumpOD-05TF800WBD41 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF800WBD supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration

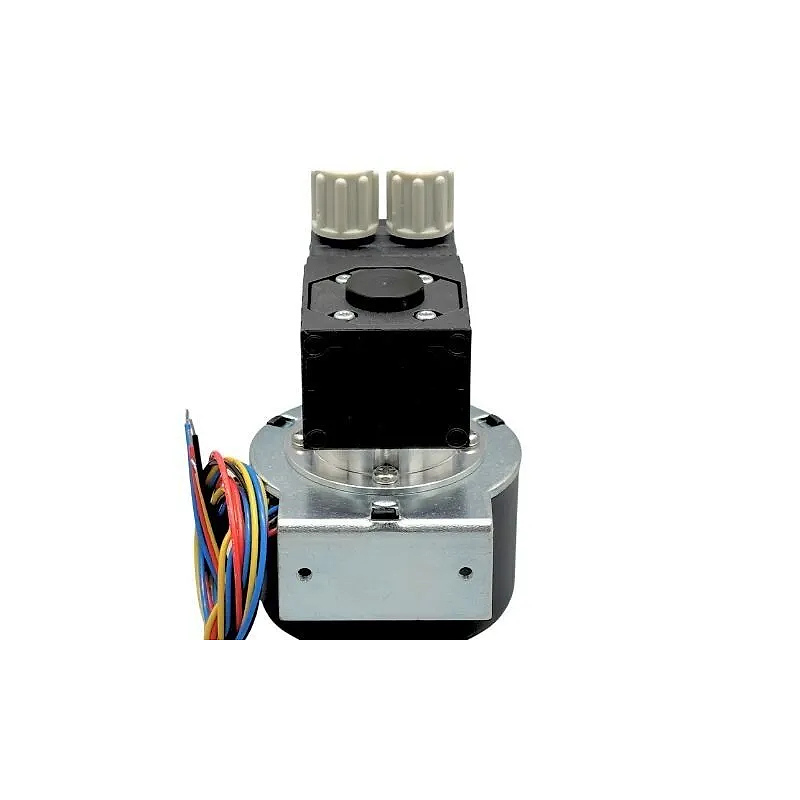

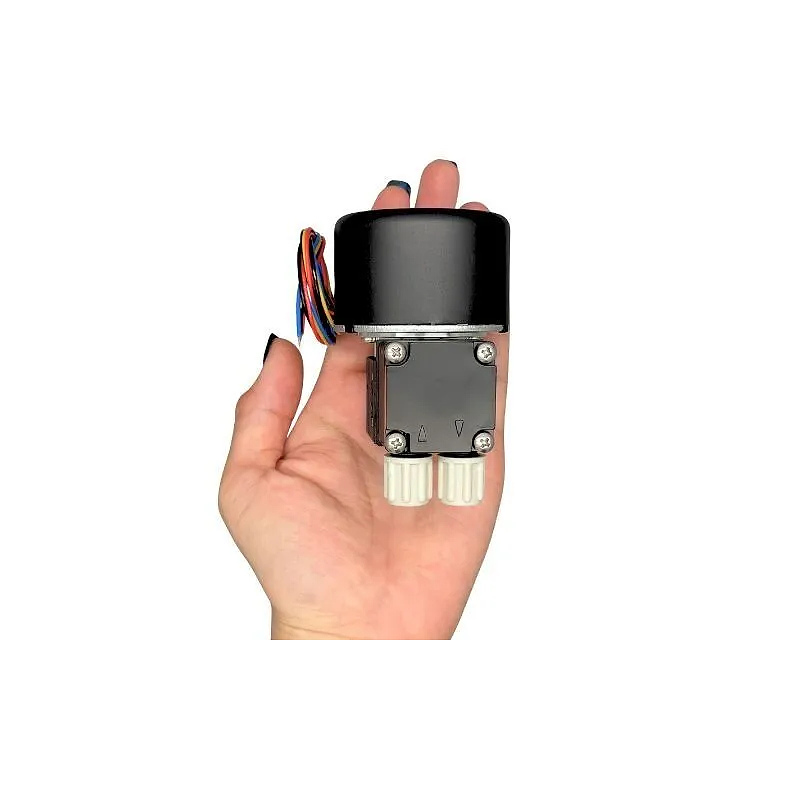

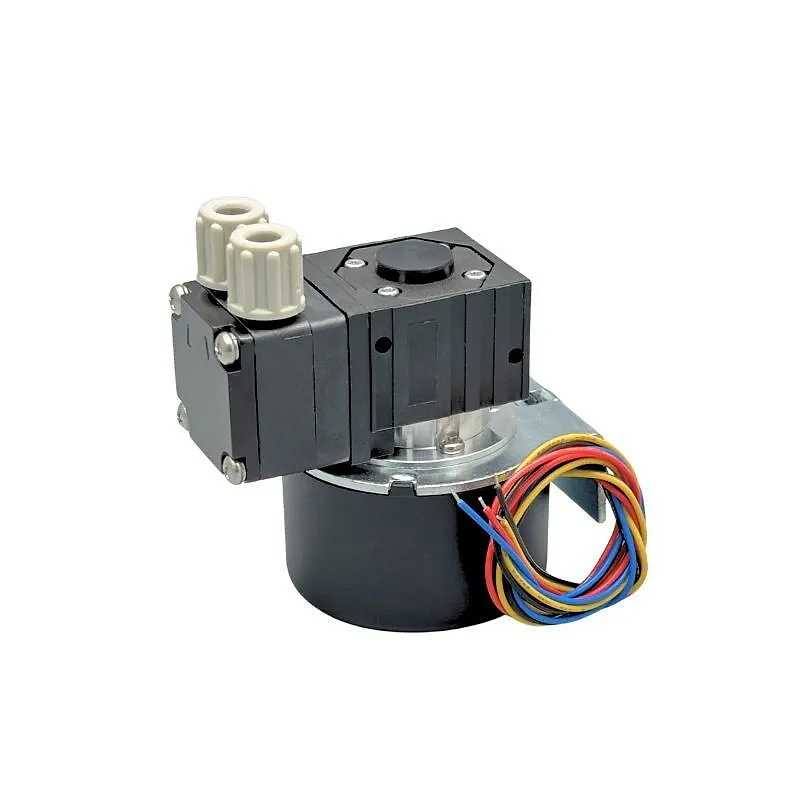

White-background imagery
OD-05TF800WBD product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF800WBD. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12 V / 24 V DC
Max Flow800 mL/min (water), 3.5 L/min (gas)
Max Vacuum-50 kPa
Max Pressure1 bar (water), 80 kPa (gas)
MotorDC Brushless Motor
Load Current0.6A/0.35A
Weight290 g
ModelOD-05TF800WBD
TypeMicro Water Pump
StructureDiaphragm Pump
Voltage Range12 V / 24 V
Free Water Flow800 mL/min (0.211 gpm)
Max Water Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Water Pressure Head>15 m
Water Suction Head5 m
Free Gas Flow3.5 L/min (0.124 cfm)
Max Gas Pressure+80 kPa (11.6 psi / 800 mbar)
Max Gas Vacuum-50 kPa (-14.8 in.Hg / -500 mbar / -375 mmHg)
Motor TypeDC Brushless Motor
Load Current0.6 A / 0.35 A
Noise55 dB
Service life10000 h
Dimensions79 × R27 × 77 mm (3.11 × R1.06 × 3.03 in)
Recommended Tubing SizeID4 mm / OD6 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPPS
DiaphragmEPDM
ValveEPDM
ItemCustomization Options
Voltage12 V / 24 V options; project-based adjustment available
Motor TypeBrushless DC motor with duty-cycle tuning support
MaterialsPPS, EPDM, PTFE, or FFKM options for media compatibility
WiringCustom cable length and wire definition
ConnectorOpen leads, plug connectors, or OEM interface
TubingID4 mm / OD6 mm standard; custom tubing available
BrandingPrivate label or customer-specific marking
MountingM3 base mounting or custom bracket support
Control Signal0-5 V PWM speed control and FG output
Pressure / Flow TuningAdjusted according to application requirements

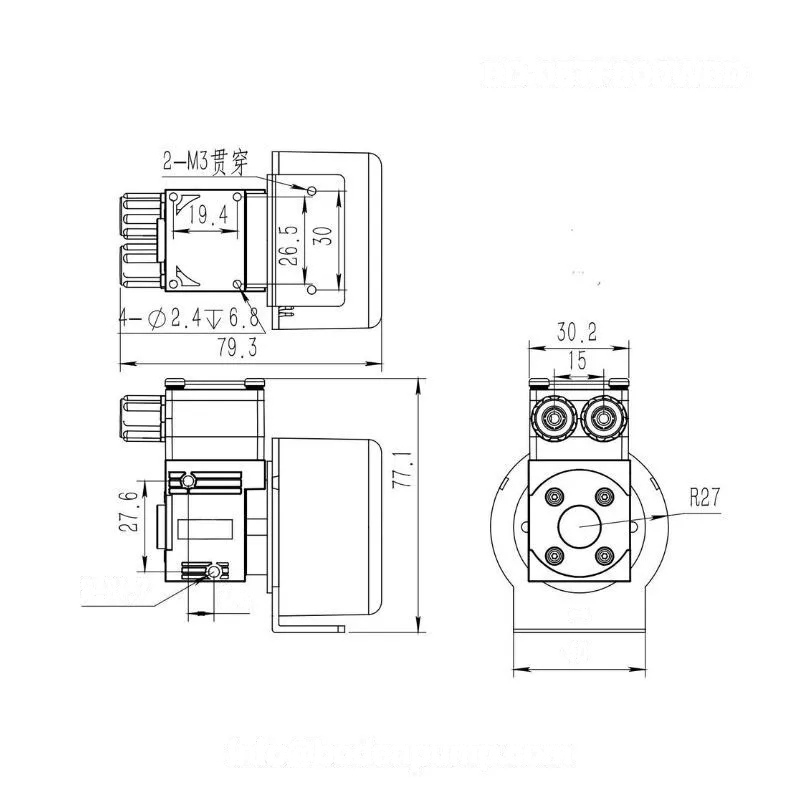

Technical drawings
OD-05TF800WBD dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF800WBD application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 12 V / 24 V DC
- Max Flow
- 800 mL/min (water), 3.5 L/min (gas)
- Max Vacuum
- -50 kPa
- Max Pressure
- 1 bar (water), 80 kPa (gas)
Model comparison
OD-05TF800WBD and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
| OD-05TF600WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TF800WBD series. For 3D files matched to OD-05TF800WBD, include the current model in the RFQ.
OD-05TF800WBD 12V Liquid Pump Datasheet (PDF)
Locally synchronized file, 144 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TF800WBD series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
