OD-05TF200W
Diaphragm Liquid Pump 200 mL/min Low Noise Coding Machine Pump OD-05TF200W JSG
Compact 200 mL/min diaphragm liquid pump with low noise and high pressure. Ideal for coding machines, analyzers, and OEM fluid systems.
Diaphragm liquid pumpOD-05TF200W33 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF200W supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
Product data
Technical specifications
The following specifications apply to OD-05TF200W. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6/12/24V
Max Water Flow200 mL/min
Max Water Pressure8 bar
Max Vacuum-35 kPa
MotorDC Brush Motor
Max Power12 W
Weight430 g
ModelOD-05TF200W
TypeMicro Diaphragm Liquid Pump
StructureSingle-Head Diaphragm Pump
Voltage Range6 V / 12 V / 24 V DC
Free Water Flow200 mL/min (0.053 gpm)
Max Water Pressure8 bar (116 psi / 8000 mbar / 0.8 MPa)
Water Pressure Head>15 m
Water Suction Head5 m
Max Gas Vacuum-35 kPa (-10.3 in.Hg / -350 mbar / -262 mmHg)
Motor TypeDC Brush Motor
Noise55 dB
Service life3000 h
Dimensions120.1 × 31.2 × 63.5 mm (4.73 × 1.23 × 2.50 in)
Weight430 g(0.95 lb)
Recommended Tubing SizeID4mm, OD6mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 80°C
ComponentMaterial / Feature
Pump HeadPA66 engineering plastic
DiaphragmEPDM
ValveEPDM
Customization ItemAvailable Options
Voltage6 V / 12 V / 24 V
Pump MaterialsPPS pump head, PTFE diaphragm, FFPM valves
WiringCustomized cable harness
BrandingOEM label and product marking

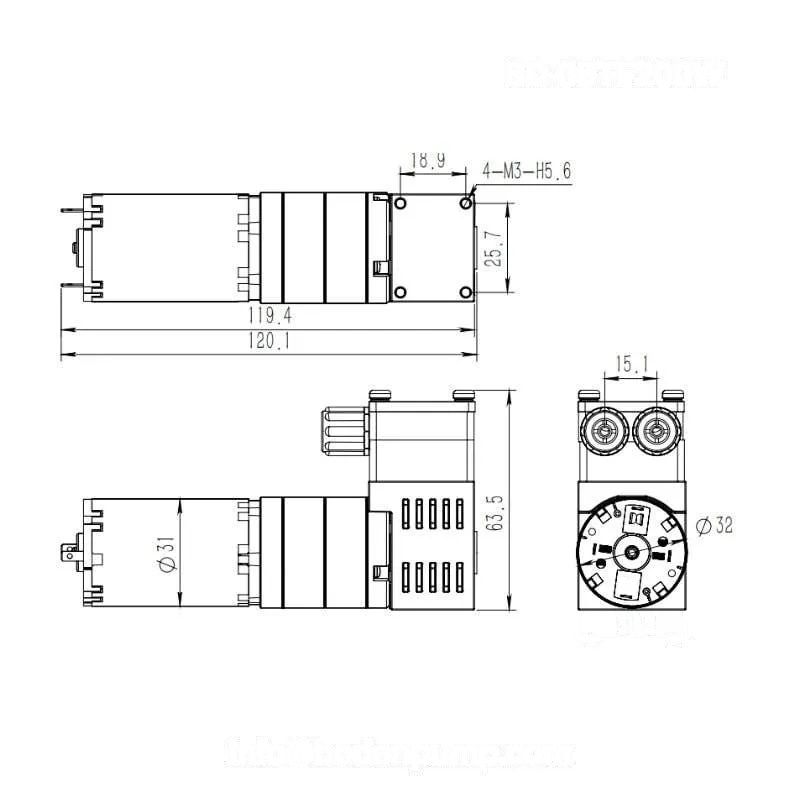

Technical drawings
OD-05TF200W dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF200W application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6/12/24V
- Max Water Flow
- 200 mL/min
- Max Water Pressure
- 8 bar
- Max Vacuum
- -35 kPa
Model comparison
OD-05TF200W and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF600WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | View model |
