OD-05TF300WB
Micro Diaphragm Pump 300 mL/min Brushless Waste Ink Pump OD-05TF300WB - JSG
Compact brushless waste ink diaphragm pump 300mL/min with self-priming, low noise and 10,000h lifespan. Ideal for printers, analyzers and OEM systems by JSG.
Diaphragm liquid pumpOD-05TF300WB37 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF300WB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
White-background imagery

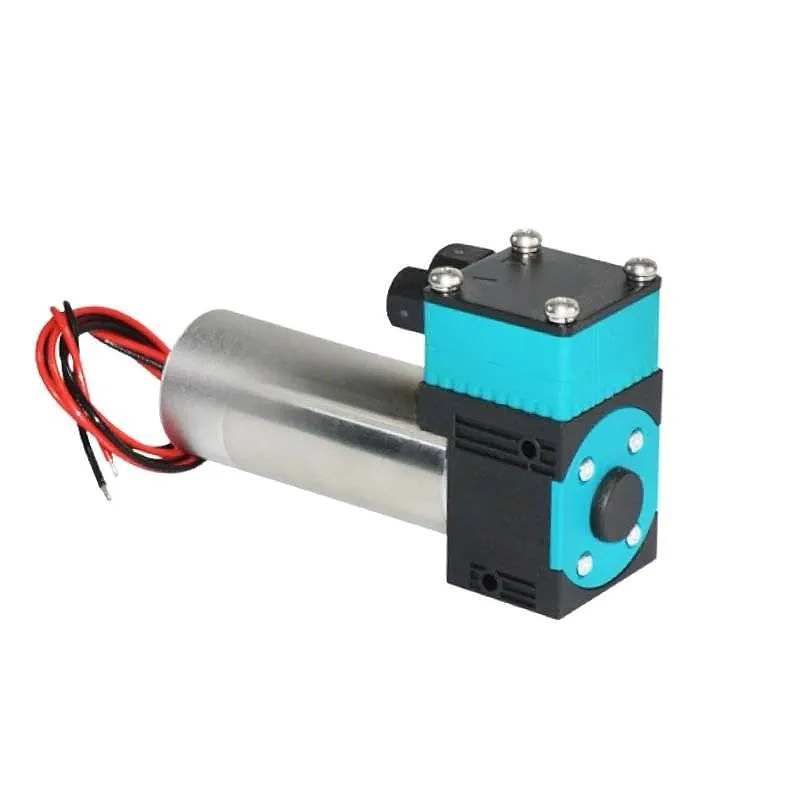

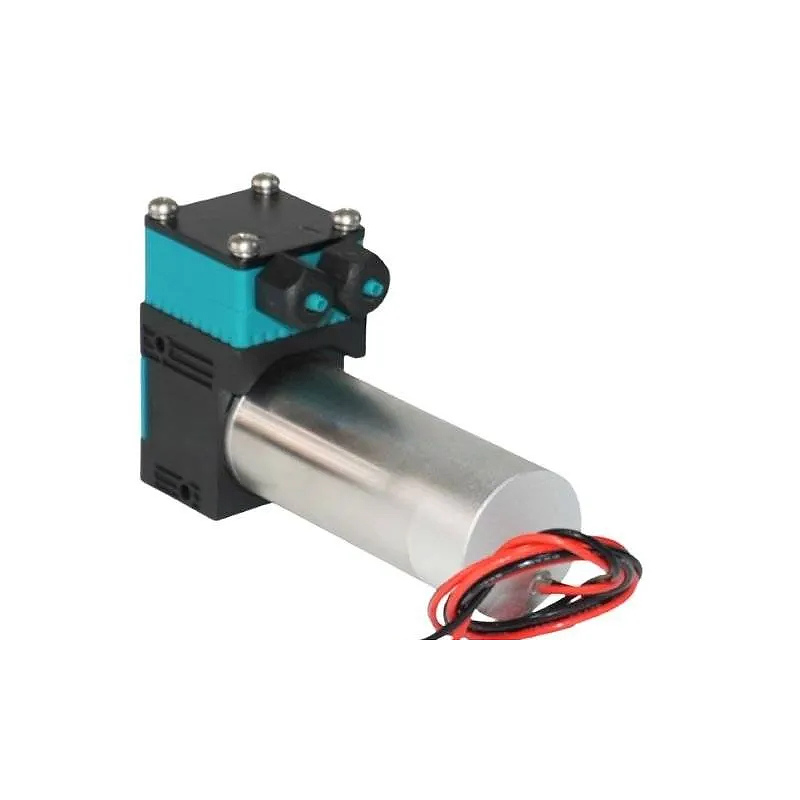

OD-05TF300WB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF300WB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 V / 12 V / 24 V DC
Max Flow300 mL/min (water), 4 L/min (gas)
Max Vacuum-60 kPa
Max Pressure2.5 bar (water), 1 bar (gas)
MotorDC Brushless Motor
Max Power6 W
Weight240 g
ModelOD-05TF300WB
TypeSmall Liquid Pump
StructureDiaphragm reciprocating mechanism
Voltage Range6V / 12V / 24V DC
Free Water Flow300 mL/min (0.079 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head7 m
Free Gas Flow4 L/min (0.141 cfm)
Max Gas Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Max Gas Vacuum-60 kPa (-17.7 inHg / -600 mbar / -450 mmHg)
Motor TypeDC Brushless Motor
Noise55 dB
Service life10,000 H
Dimensions93.9 × 31.1 × 57.9 mm (3.70 × 1.22 × 2.28 in)
Weight240 g (0.53 lb)
Recommended Tubing SizeID 3 mm, OD 5 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66 engineering plastic
DiaphragmEPDM
ValveEPDM
Customization ItemAvailable Options
Voltage6V / 12V / 24V
Motor TypeBrushless with PWM & FG signal
MaterialsPPS head / PTFE diaphragm / FFPM valve
WiringCustom cable harness
ConnectorApplication-specific connector
BrandingOEM label / private logo
Technical drawings

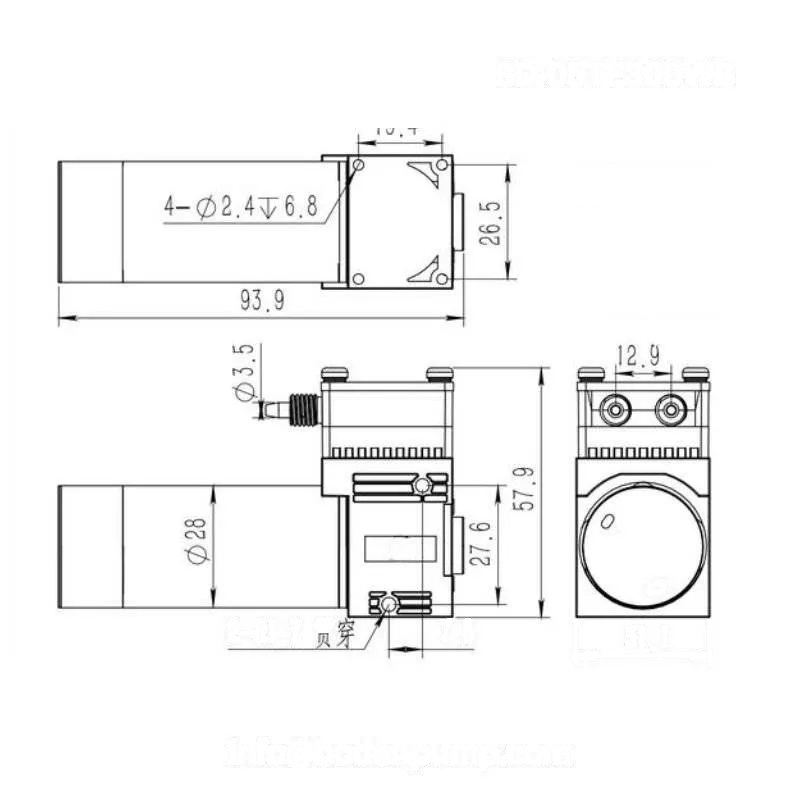

OD-05TF300WB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF300WB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 V / 12 V / 24 V DC
- Max Flow
- 300 mL/min (water), 4 L/min (gas)
- Max Vacuum
- -60 kPa
- Max Pressure
- 2.5 bar (water), 1 bar (gas)
Model comparison
OD-05TF300WB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF300WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 300 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
