OD-05TF450W
Compact Liquid Pump 450 mL/min Dry-Running UV Ink Compatible Transfer Pump OD-05TF450W JSG
OD-05T450W compact diaphragm liquid pump for UV ink and OEM systems. 450 mL/min, gas-liquid compatible, self-priming, low vibration design.
Diaphragm liquid pumpOD-05TF450W37 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF450W supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
White-background imagery

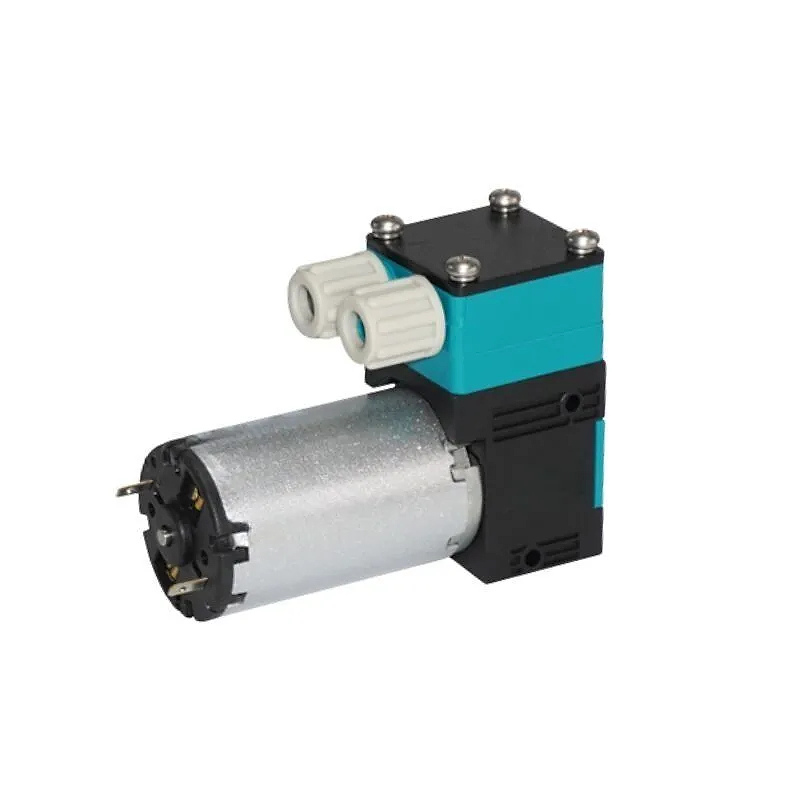

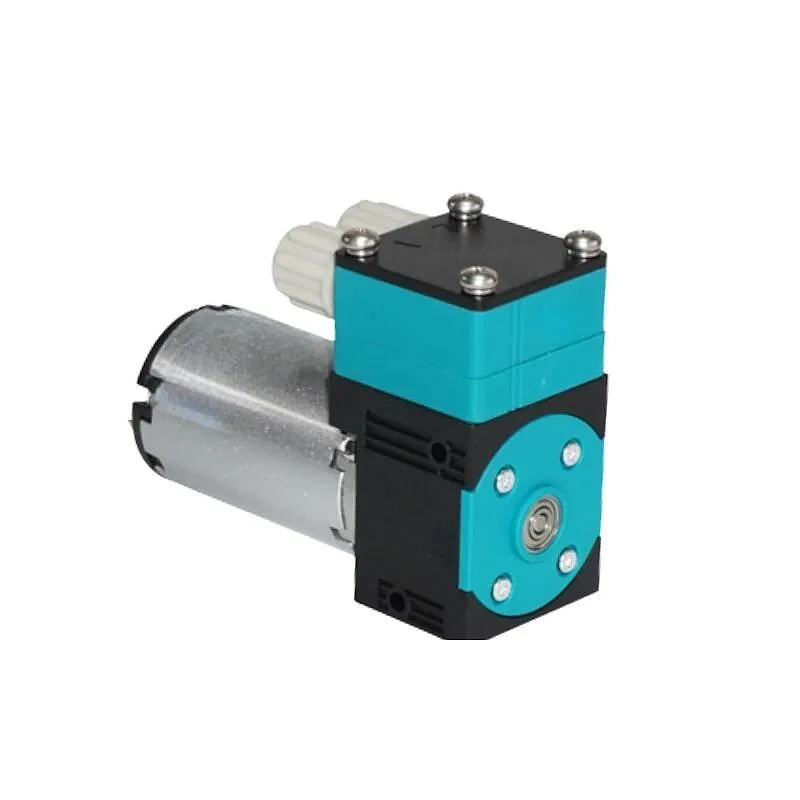

OD-05TF450W product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF450W. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6/12/24V DC
Max Flow450 mL/min (water), 4 L/min (gas)
Max Vacuum-60 kPa
Max Pressure2.5 bar (water), 1 bar (gas)
MotorDC Brush Motor
Max Power7 W
Weight200 g
ModelOD-05TF450W
TypeCompact liquid pump
StructureDiaphragm pump
Voltage Range6 V / 12 V / 24 V DC
Free Water Flow450 mL/min (0.119 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head7 m
Free Gas Flow4 L/min (0.141 cfm)
Max Gas Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Max Gas Vacuum-60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg)
Motor TypeDC Brush Motor
Noise55 dB
Service life3000 h
Dimensions82.6 × 31.1 × 60.3 mm (3.25 × 1.22 × 2.37 in)
Weight200 g(0.44 lb)
Recommended Tubing SizeID 4 mm / OD 6 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial
Pump HeadPA66
DiaphragmEPDM
ValveEPDM
Wetted PartsPA + EPDM
ItemCustom Options
Voltage6V / 12V / 24V customization
MaterialsPTFE / FFPM upgrade options
TubingCustomized inlet/outlet interfaces
MountingOEM installation structure adaptation
BrandingPrivate label support
Technical drawings

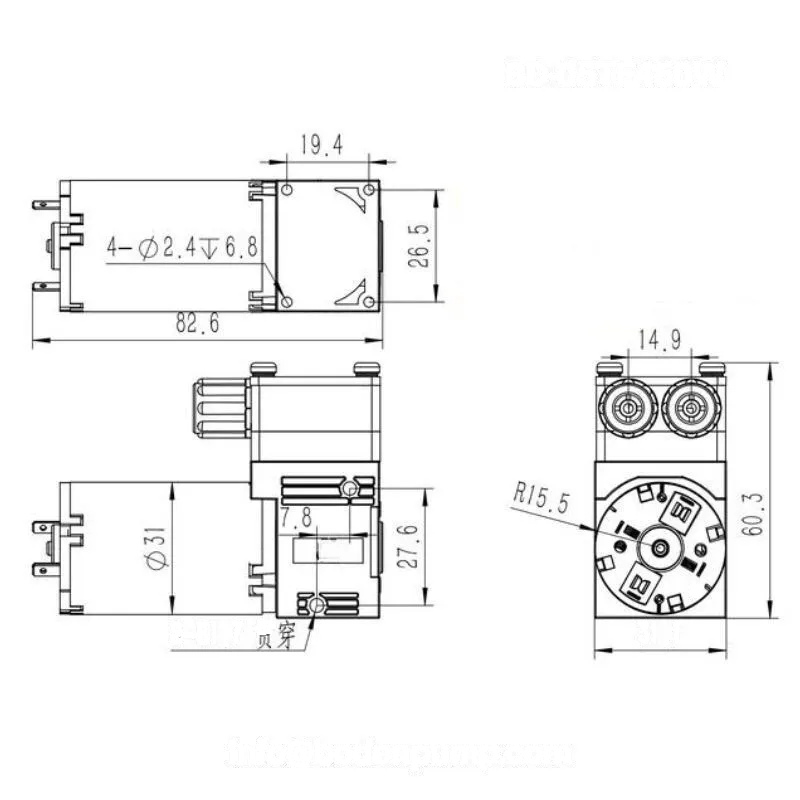

OD-05TF450W dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF450W application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6/12/24V DC
- Max Flow
- 450 mL/min (water), 4 L/min (gas)
- Max Vacuum
- -60 kPa
- Max Pressure
- 2.5 bar (water), 1 bar (gas)
Model comparison
OD-05TF450W and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF450W | Diaphragm liquid pump | Voltage 6/12/24V DC; Max Flow 450 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
