OD-05TF480WB
DC Liquid Pump 480mL/min PWM Speed Adjustable CIJ Printer Pump OD-05TF480WB JSG
Compact 480mL/min DC liquid pump with PWM speed control for CIJ printers, analyzers, and OEM fluid systems. Brushless diaphragm pump by JSG.
Diaphragm liquid pumpOD-05TF480WB39 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF480WB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
White-background imagery

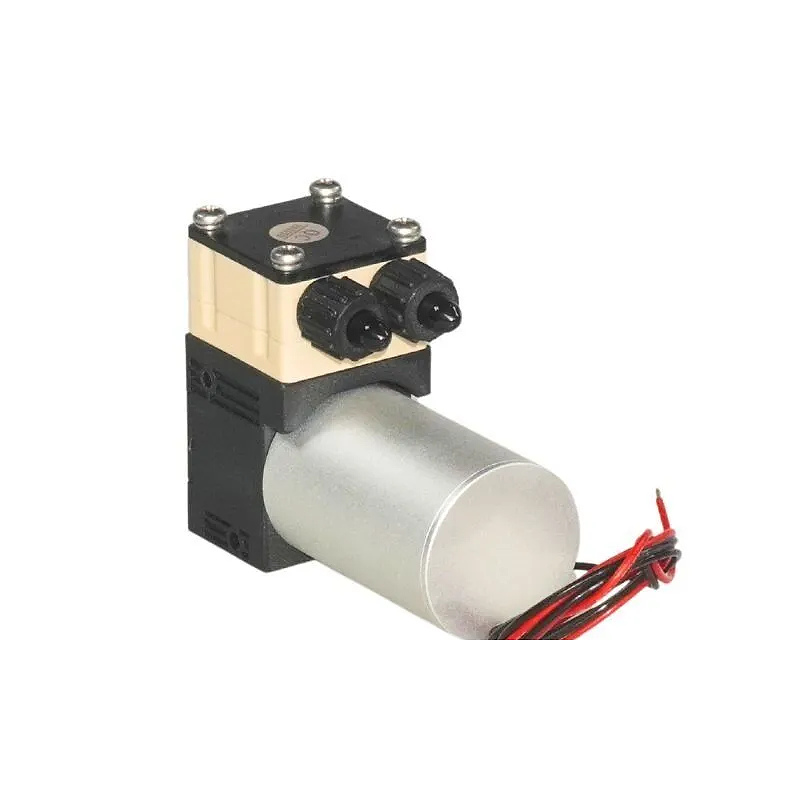

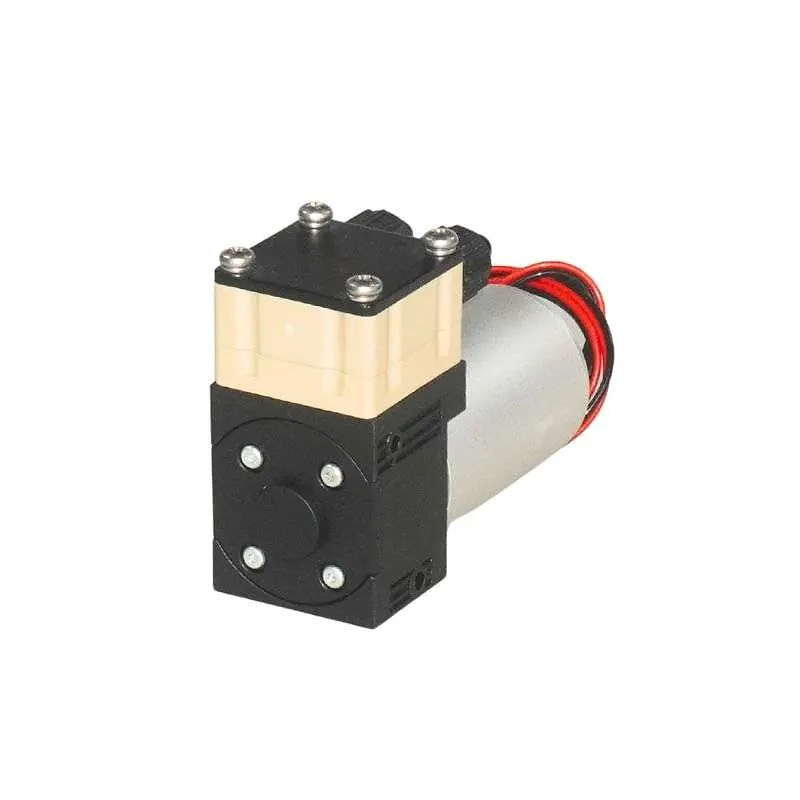

OD-05TF480WB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF480WB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 V / 12 V / 24 V DC
Max Flow480 mL/min (water), 4 L/min (gas)
Max Vacuum-60 kPa
Max Pressure2.5 bar (water), 80 kPa (gas)
MotorDC Brushless Motor
Max Power7 W
Weight200 g
ModelOD-05TF480WB
TypeDC Liquid Pump
StructureDiaphragm Pump
Voltage Range6 V / 12 V / 24 V
Free Water Flow480 mL/min (0.127 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head6 m
Free Gas Flow4 L/min (0.141 cfm)
Max Gas Pressure80 kPa (11.6 psi / 800 mbar)
Max Gas Vacuum-60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg)
Motor TypeDC Brushless Motor
Noise55 dB
Service life8000 h
Dimensions75 × 31.1 × 60.4 mm (2.95 × 1.22 × 2.38 in)
Weight200 g(0.44 lb)
Recommended Tubing SizeID4 mm / OD6 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66
DiaphragmEPDM
ValveEPDM
ItemCustomization Options
Voltage6 V / 12 V / 24 V selectable or project-specific adjustment
Motor TypeBrushless DC / optimized motor tuning for duty cycle requirements
MaterialsEPDM / PTFE / FKM optional for chemical compatibility
WiringStandard leads / customized length / shielded cable
ConnectorPlug type / waterproof connector / OEM-defined interface
TubingID/OD size adjustment based on system design
BrandingPrivate label / logo customization available
MountingCustomized brackets or installation structure support
Technical drawings

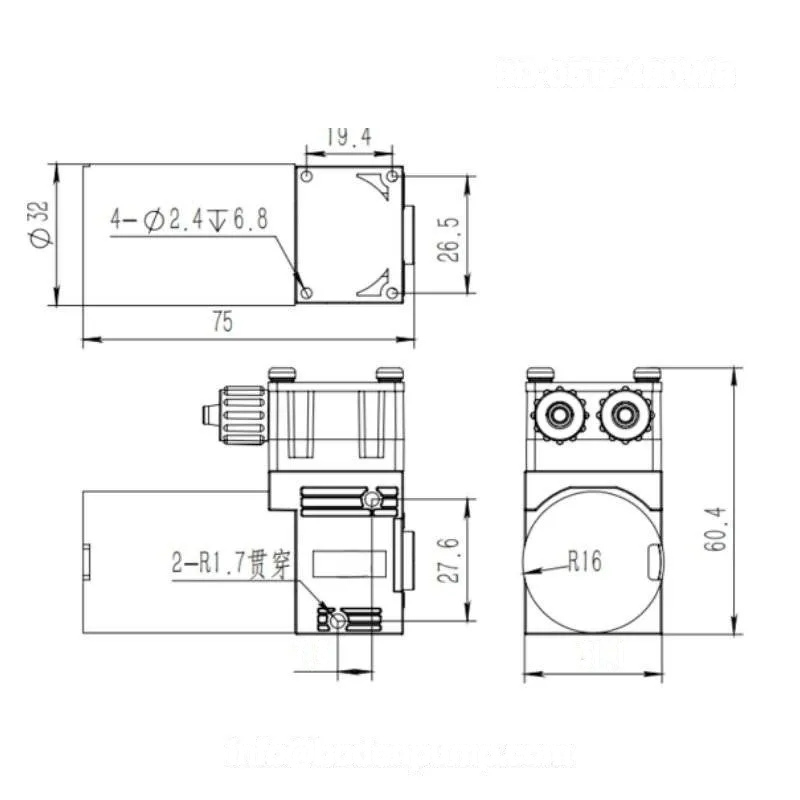

OD-05TF480WB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF480WB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 V / 12 V / 24 V DC
- Max Flow
- 480 mL/min (water), 4 L/min (gas)
- Max Vacuum
- -60 kPa
- Max Pressure
- 2.5 bar (water), 80 kPa (gas)
Model comparison
OD-05TF480WB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF480WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 480 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
