Application scenarios
Typical uses include water-based liquid transfer, dosing, recirculation and compact fluid handling in instruments or OEM equipment.
OD-05TF1500WBD

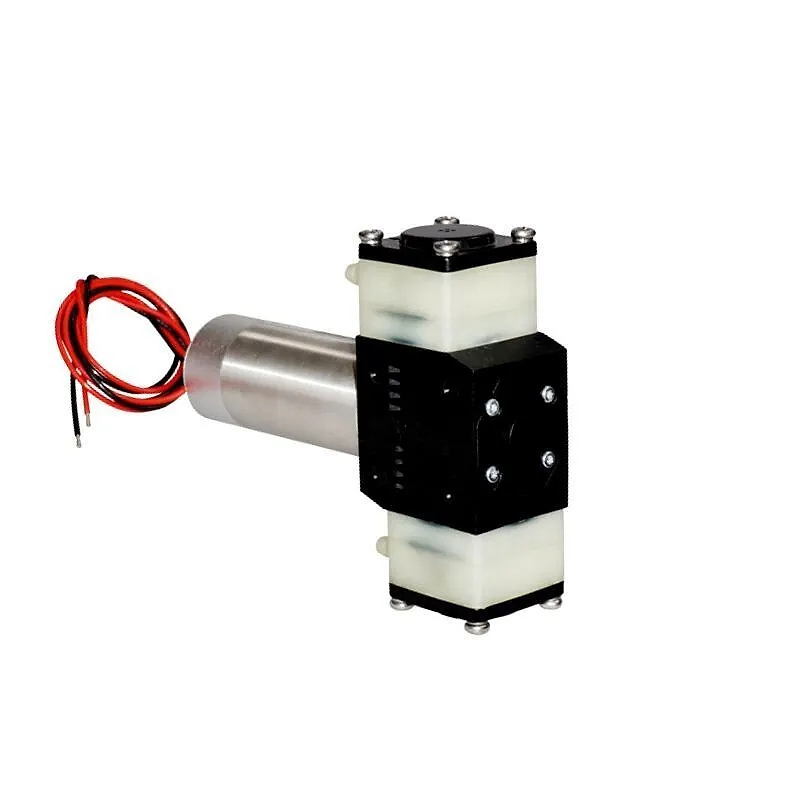

Micro Diaphragm Gas-Liquid Pump 1500mL Double Head Diaphragm Membrane Pump Low Pulse OD-05TF1500WBD JSG
Micro diaphragm gas-liquid pump with 1500 mL/min water flow, dual-head low-pulse design and brushless motor for OEM liquid and gas handling systems.
Diaphragm liquid pumpOD-05TF1500WBD37 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF1500WBD supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
Product data
Technical specifications
The following specifications apply to OD-05TF1500WBD. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12 V / 24 V DC
Max Flow750 mL/min × 2 (water), 3.5 L/min × 2 (gas)
Max Vacuum-50 kPa
Max Pressure2.5 bar × 2 (water), 80 kPa (gas)
MotorDC Brushless Motor
Max Power15 W
Weight280 g
ModelOD-05TF1500WBD
TypeDouble Head Liquid Pump
StructureDual-Head Diaphragm Pump
Voltage Range12 V / 24 V
Free Water Flow750 mL/min × 2 (0.198 gpm × 2)
Max Water Pressure2.5 bar × 2 (36.3 psi × 2 / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head6 m
Free Gas Flow3.5 L/min × 2 (0.124 cfm × 2)
Max Gas Pressure80 kPa (11.6 psi / 800 mbar)
Max Gas Vacuum-50 kPa (-14.8 in.Hg / -500 mbar / -375 mmHg)
Motor TypeDC Brushless Motor
Noise55 dB
Service life10000 h
Dimensions108 × 29.8 × 89.6 mm (4.25 × 1.17 × 3.53 in)
Recommended Tubing SizeID6 mm / OD8 mm
Ambient Temperature5°C to 40°C
Fluid Temperature5°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66
DiaphragmEPDM
ValveEPDM
Wetted MaterialsPA + EPDM + EPDM
ItemCustomization Options
Voltage12 V / 24 V options; project-based adjustment available
MaterialsPA66, EPDM, PTFE, or FFKM options
WiringCustom cable length and wire definition
ConnectorOpen leads, plug connectors, or OEM interface
BrandingPrivate label or customer-specific marking
MountingBottom mounting structure or custom bracket support

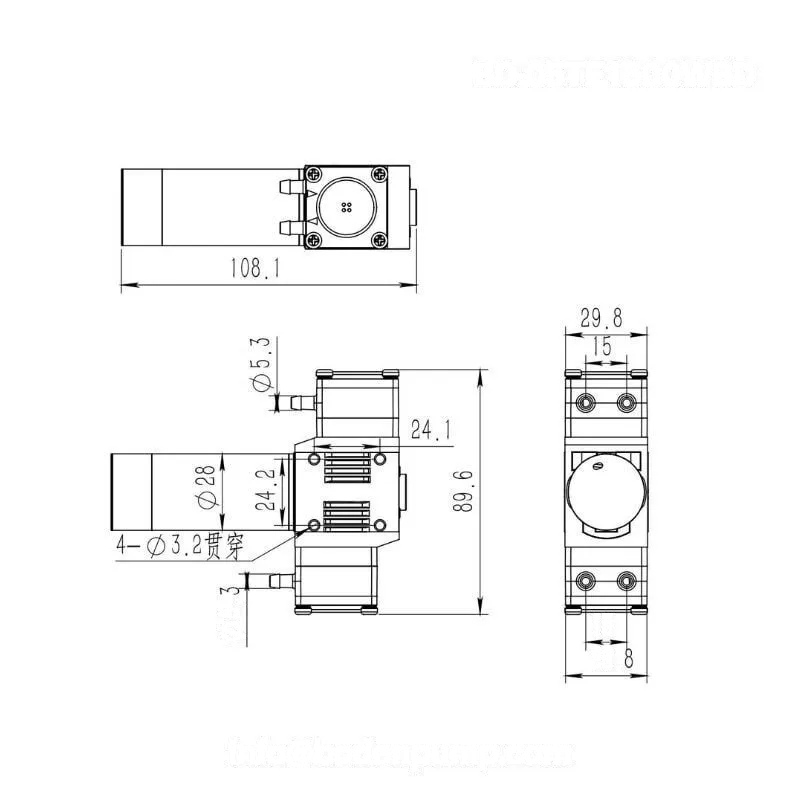

Technical drawings
OD-05TF1500WBD dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF1500WBD application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 12 V / 24 V DC
- Max Flow
- 750 mL/min × 2 (water), 3.5 L/min × 2 (gas)
- Max Vacuum
- -50 kPa
- Max Pressure
- 2.5 bar × 2 (water), 80 kPa (gas)
Model comparison
OD-05TF1500WBD and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF1500WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 750 mL/min × 2 (water), 3.5 L/min × 2 (gas); Max Vacuum -50 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TF1500WBD series. For 3D files matched to OD-05TF1500WBD, include the current model in the RFQ.
OD-05TF1500WBD Micro Diaphragm Gas-Liquid Pump Datasheet (PDF)
Locally synchronized file, 146 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TF1500WBD series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
