OD-05TF110WB
Mini Liquid Pump 110 mL/min Brushless Ink Pump OD-05TF110WB - JSG
Compact brushless micro diaphragm pump delivering 110 mL/min liquid flow and 2.5 bar pressure. Oil-free design for digital printing, lab automation, and analytical systems.
Diaphragm liquid pumpOD-05TF110WB37 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF110WB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
White-background imagery

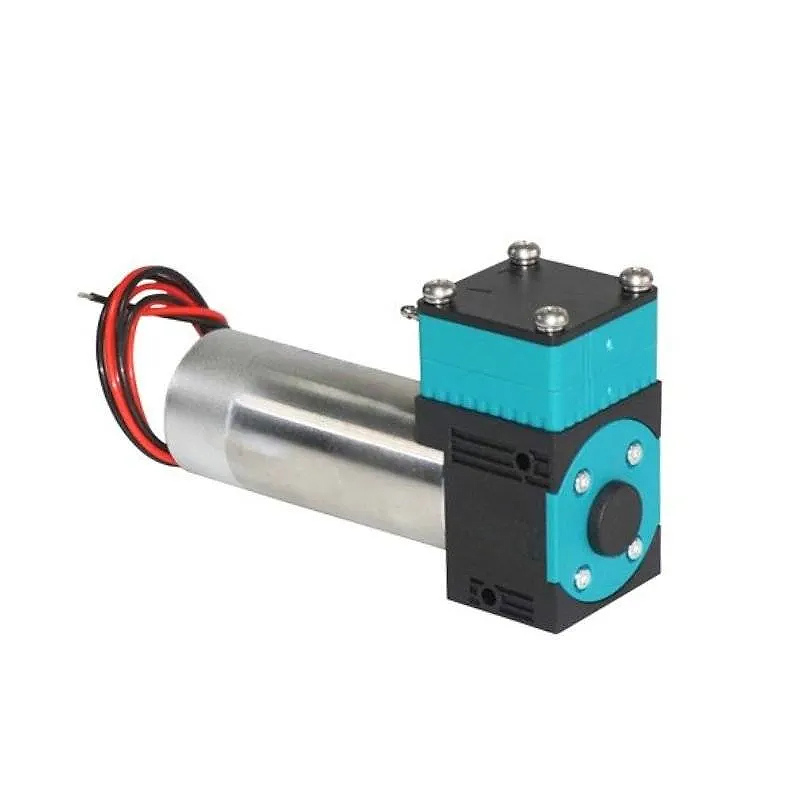

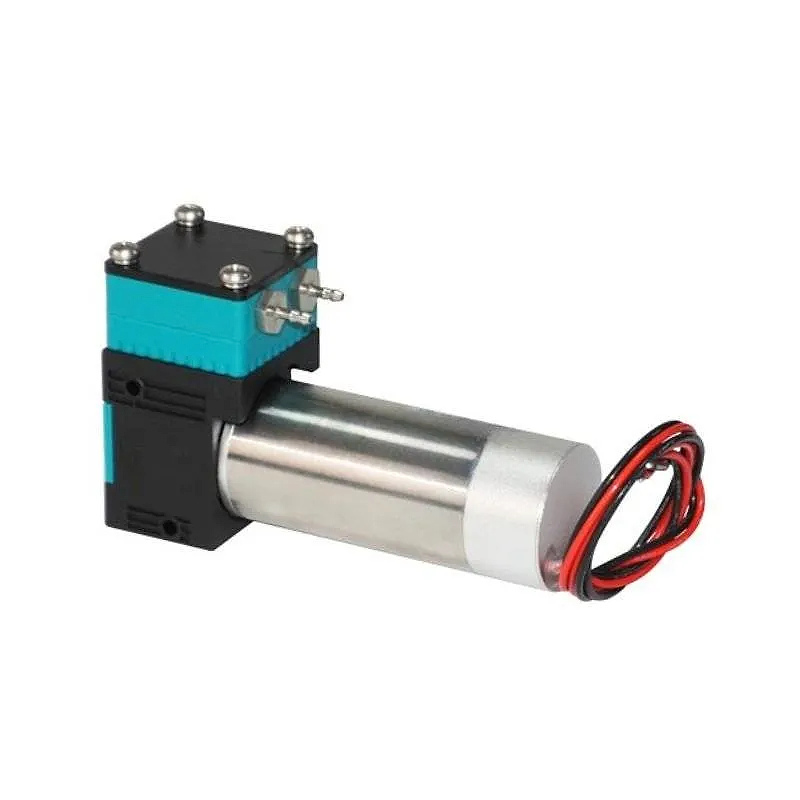

OD-05TF110WB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF110WB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 V / 12 V / 24 V DC
Max Flow110 mL/min (water), 3 L/min (gas)
Max Vacuum-60 kPa
Max Pressure2.5 bar (water), 1 bar (gas)
MotorDC Brushless Motor
Max Power5 W
Weight240 g
ModelOD-05TF110WB
TypeSmall Liquid Pump
StructureDiaphragm Pump
Voltage Range6 V / 12 V / 24 V DC
Free Water Flow110 mL/min (0.029 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head7 m
Free Gas Flow3 L/min (0.106 cfm)
Max Gas Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Max Gas Vacuum-60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg)
Motor TypeDC Brushless Motor
Noise55 dB
Service life10000 h
Dimensions92.1 × 30.5 × 57.9 mm (3.36 × 1.20 × 2.28 in)
Weight240 g (0.53 lb)
Recommended Tubing SizeID 1.5 mm / OD 3 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66 engineering plastic
DiaphragmEPDM
ValveEPDM
Customization ItemAvailable Options
Voltage6V / 12V / 24V
Motor TypeOption Brush
MaterialsPPS head / PTFE diaphragm / FFPM valve
WiringCustom cable harness
ConnectorApplication-specific connector
BrandingOEM label / private logo
Technical drawings

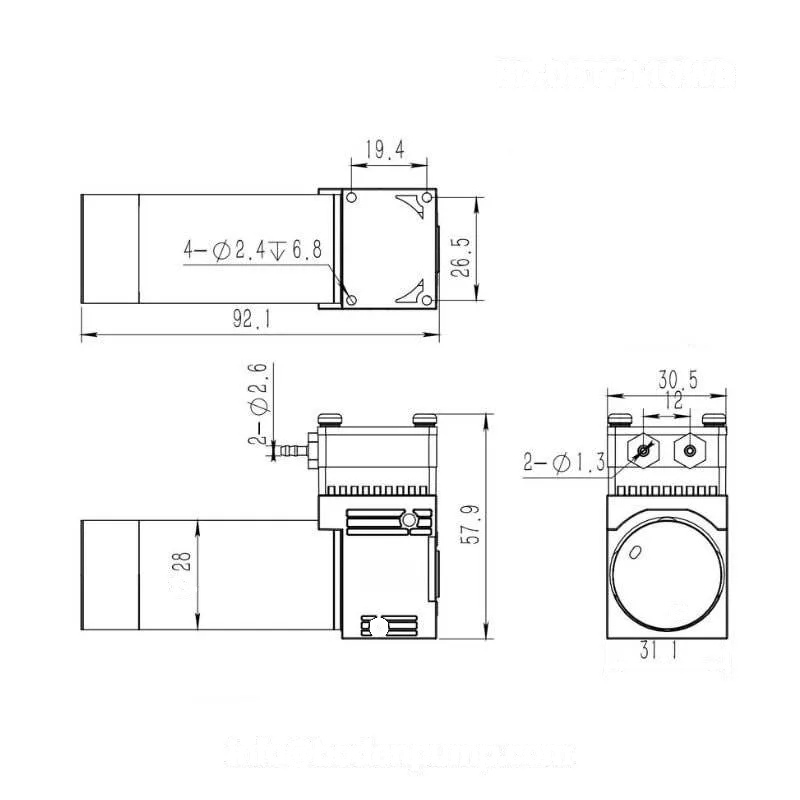

OD-05TF110WB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF110WB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 V / 12 V / 24 V DC
- Max Flow
- 110 mL/min (water), 3 L/min (gas)
- Max Vacuum
- -60 kPa
- Max Pressure
- 2.5 bar (water), 1 bar (gas)
Model comparison
OD-05TF110WB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF110WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 110 mL/min (water), 3 L/min (gas); Max Vacuum -60 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TF110WB series. For 3D files matched to OD-05TF110WB, include the current model in the RFQ.
OD-05TF100WB Micro Liquid Pump Specification (PDF)
Locally synchronized file, 151 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TF110WB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
