OD-05T60W

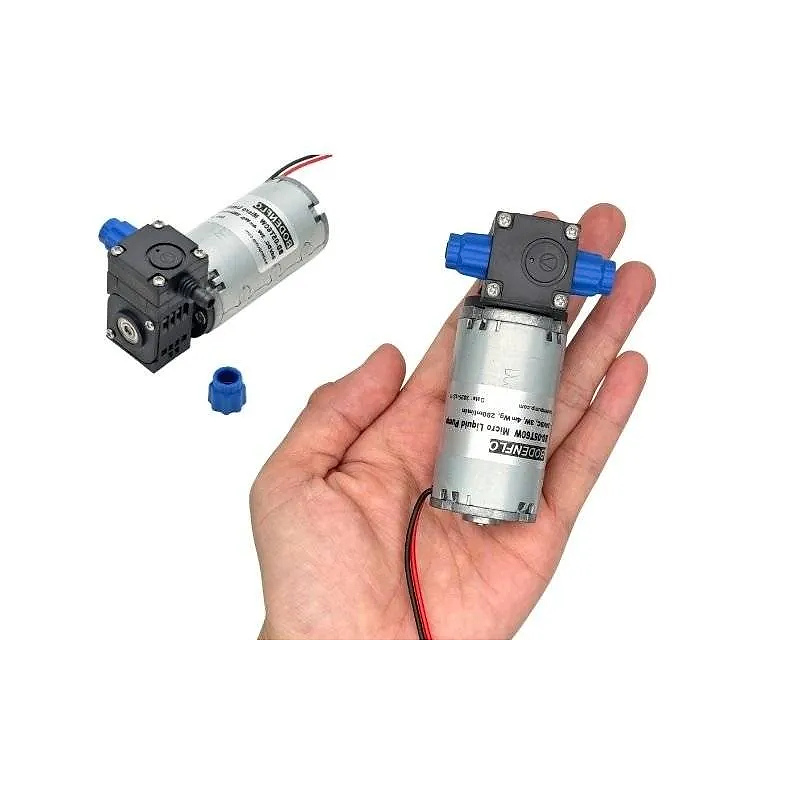

Micro Liquid Pump 12V 24V Diaphragm Water Pump 280ml for Printer Medical Sampling OD-05T60W
Compact micro liquid pump with diaphragm design for clean, stable fluid transfer. Ideal for ink, medical sampling, and OEM equipment. 12V / 24V DC.
Diaphragm liquid pumpOD-05T60W32 technical parameters3 technical drawings
Product functions
Key functions
OD-05T60W supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
Product data
Technical specifications
The following specifications apply to OD-05T60W. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow280 mL/min
Maximum Suction Lift4 mWg
Maximum Lift60 mWg (intermittent)
MotorDC brushed motor
Max Power3W
Weight172g
ParameterValue
ModelOD-05T60W
Voltage Range12 / 24 V DC
Maximum Flow280 mL/min (water, electronic flow meter)
Test MediumWater
Motor TypeDC brushed motor
Max Power3 W
Waterproof LevelIP40
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 45 ℃
Dimensions (L×W×H)77 × 31 × 44.6 mm
Weight172 g
ComponentMaterial
Pump HeadPPS / PP
DiaphragmEPDM / PTFE (customizable)
ValveEPDM / FKM (customizable)
Pump BodyHigh-strength PA66
Customization AspectAvailable Options
Diaphragm materialEPDM, PTFE
Valve materialEPDM, FKM
Pump Head MaterialPPS / PP
Voltage12 V / 24 V DC
Connector & CableCustom connector models, cable length and wiring
Label / BrandingBased to the model specified by the customer
Application TuningFlow rate and duty-cycle optimization

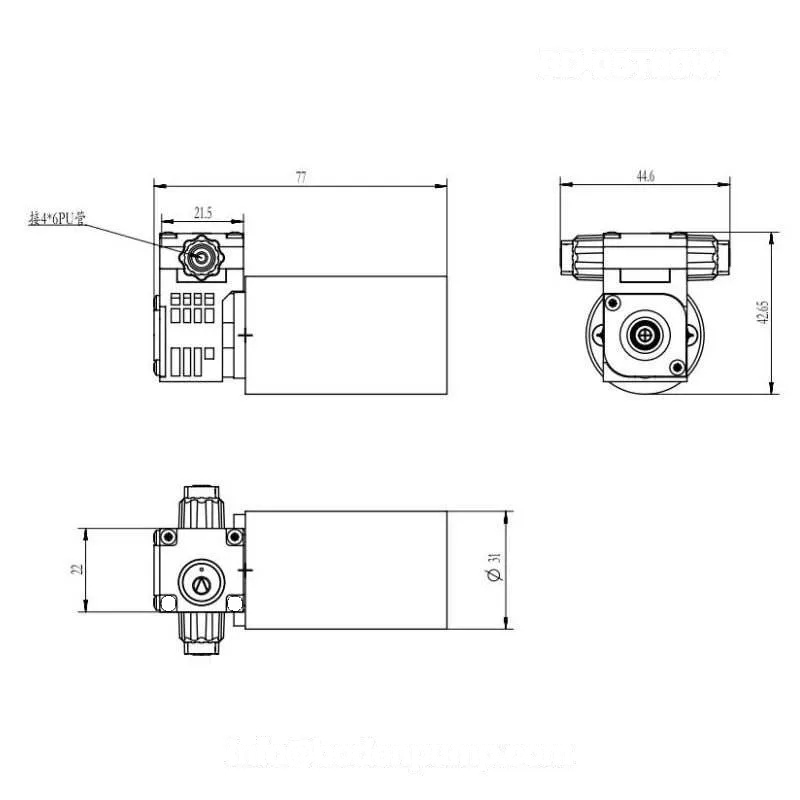

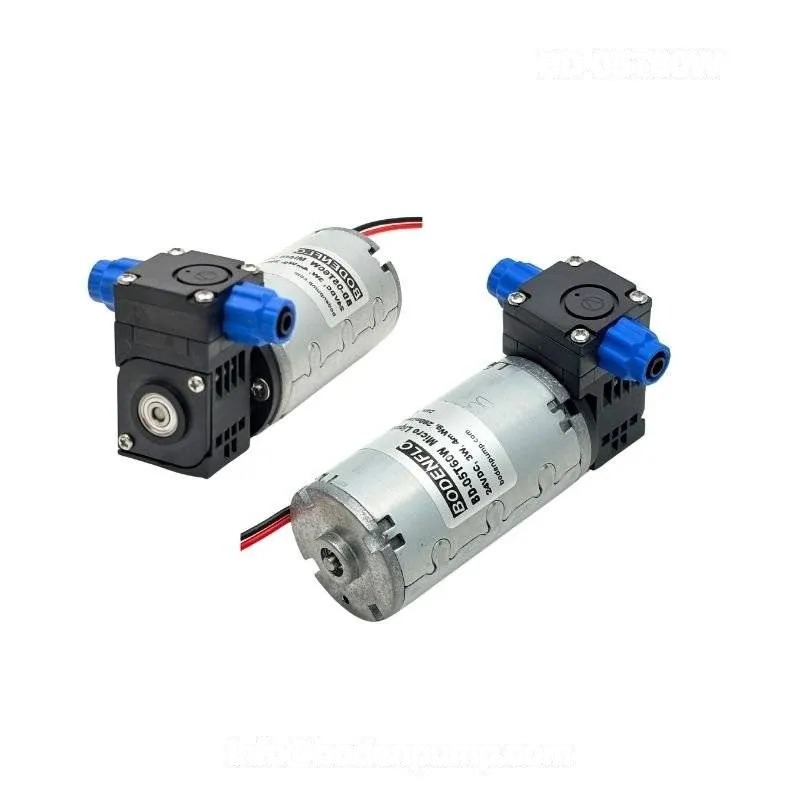

Technical drawings

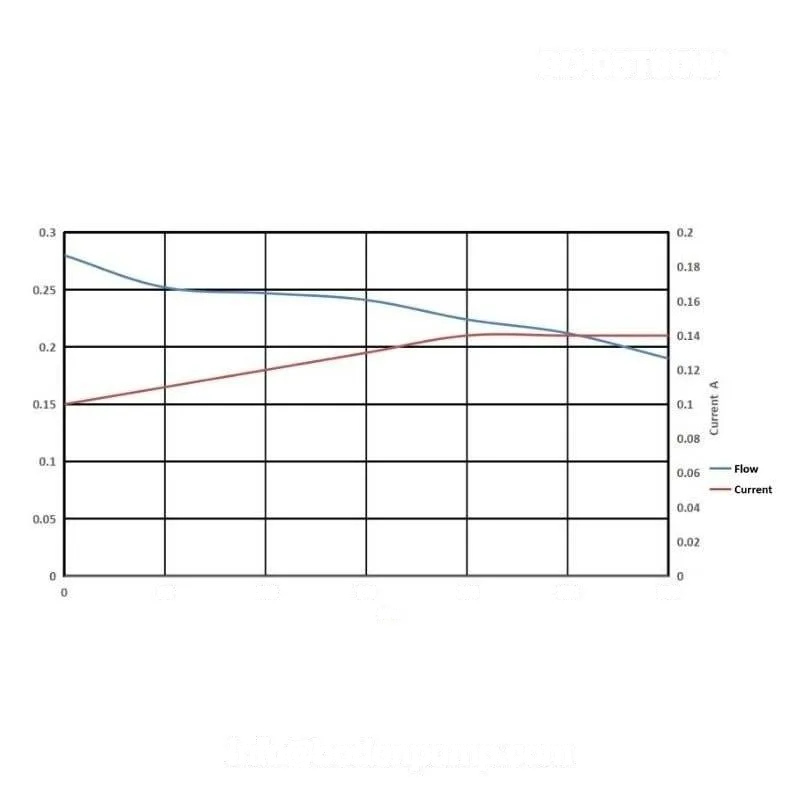

OD-05T60W dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T60W application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 12V / 24V
- Max Flow
- 280 mL/min
- Maximum Suction Lift
- 4 mWg
- Maximum Lift
- 60 mWg (intermittent)
Model comparison
OD-05T60W and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.

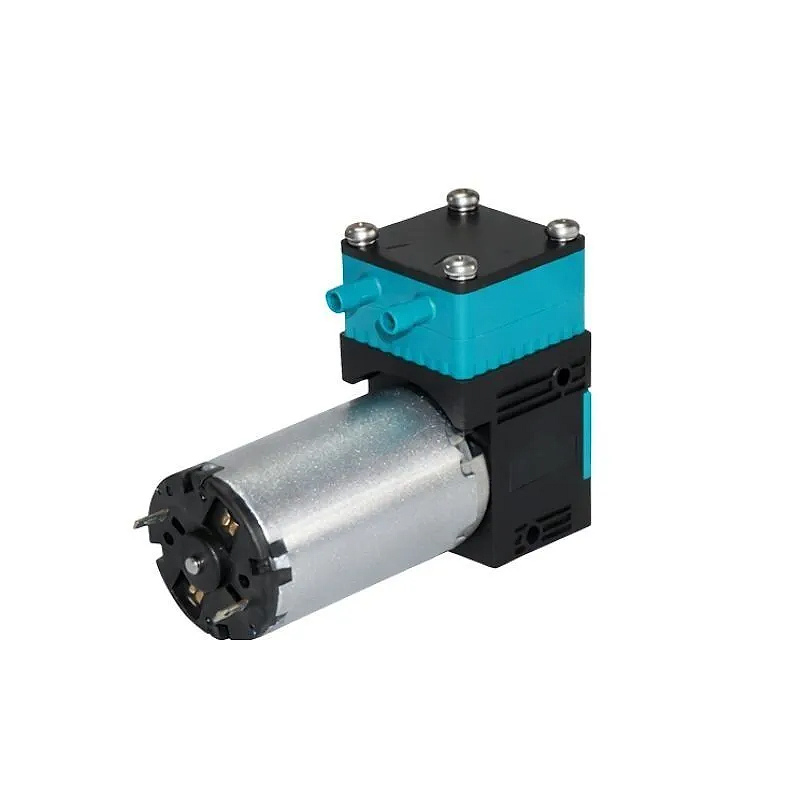

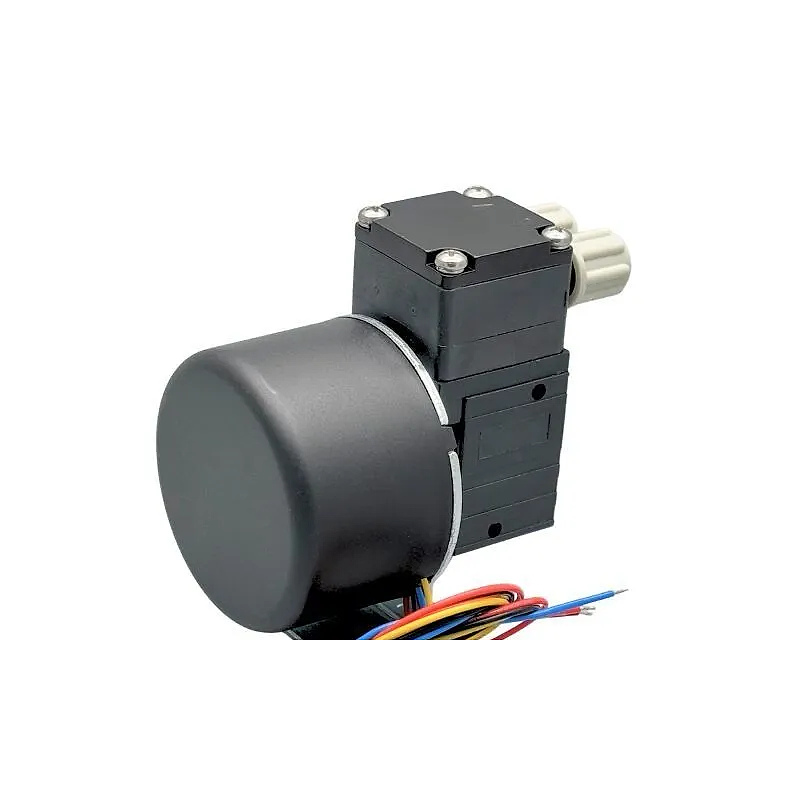

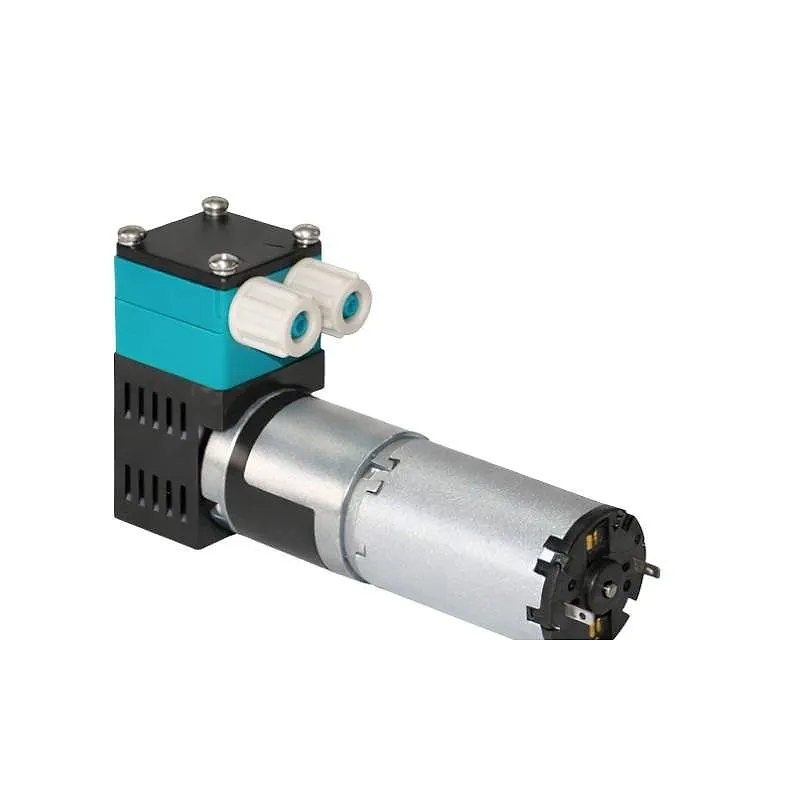

| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T60W | Diaphragm liquid pump | Voltage 12V / 24V; Max Flow 280 mL/min; Maximum Suction Lift 4 mWg | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T60W series. For 3D files matched to OD-05T60W, include the current model in the RFQ.
OD-05T60W Micro Liquid Pump Download Datasheet (PDF)
Locally synchronized file, 178 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T60W series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
