OD-05TF110W
Micro Liquid Pump 110 mL/min Ink Pump OD-05TF110W - JSG
Compact micro liquid pump delivering 110 mL/min flow and 2.5 bar pressure. Oil-free diaphragm design for digital printing, biochemical analyzers, and liquid sampling systems.
Diaphragm liquid pumpOD-05TF110W38 technical parameters1 technical drawings
Product functions
Key functions
OD-05TF110W supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
White-background imagery

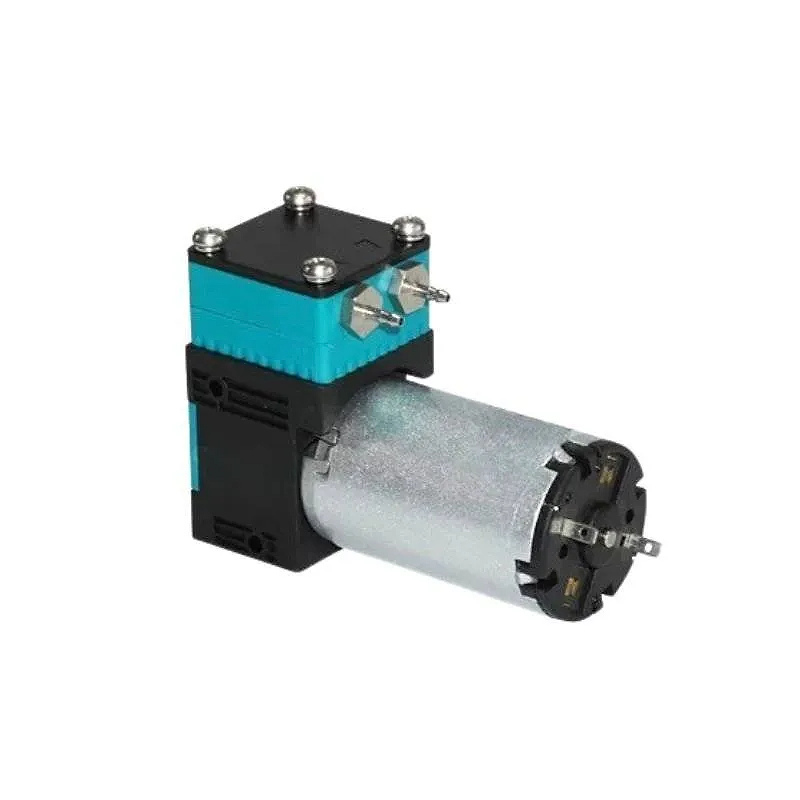

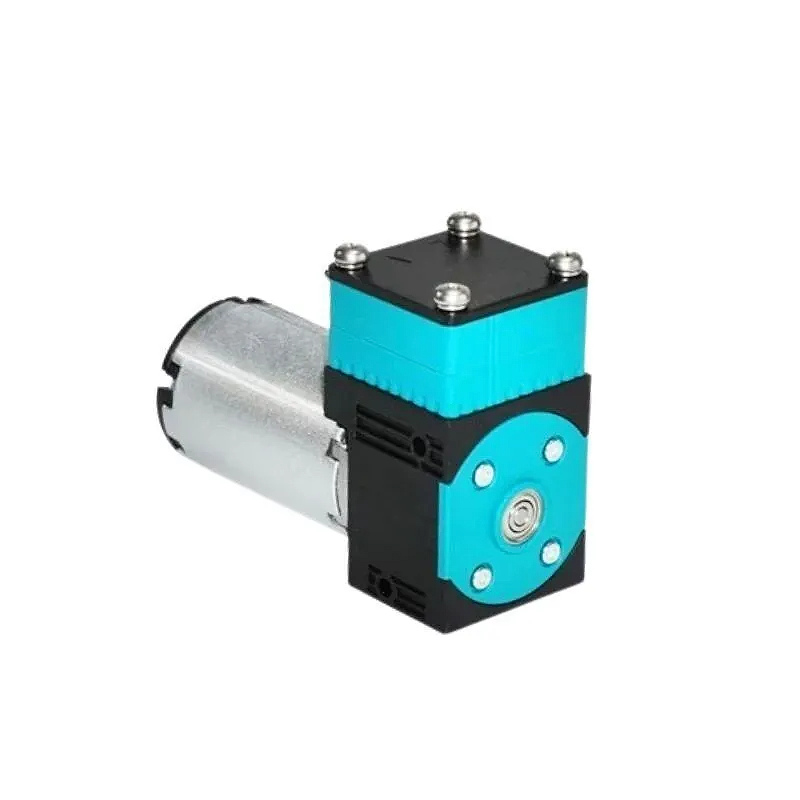

OD-05TF110W product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TF110W. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 V / 12 V / 24 V
Max Flow110 mL/min (water), 3 L/min (gas)
Max Vacuum-60 kPa
Max Pressure2.5 bar (water), 1 bar (gas)
MotorDC Brush Motor
Max Power5 W
Weight200 g
ModelOD-05TF110W
TypeSmall Liquid Pump
StructureDiaphragm Pump
Voltage Range6V / 12V / 24V DC
Free Water Flow110 mL/min (0.029 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head7 m
Free Gas Flow3 L/min (0.106 cfm)
Max Gas Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Max Gas Vacuum-60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg)
Motor TypeDC Brush Motor
Noise55 dB
Service life3000 h
Dimensions82.6 × 31.1 × 57.9 mm (3.25 × 1.22 × 2.28 in)
Weight200 g (0.44 lb)
Recommended Tubing SizeID1.5 mm, OD3 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66 engineering plastic
DiaphragmEPDM
ValveEPDM
Customization ItemAvailable Options
Voltage6V / 12V / 24V
Motor TypeBrushless DC motor or cost-optimized brushed motor
MaterialsCorrosion-resistant PPS head, PTFE diaphragm, FFPM valves
WiringCustomized cable harness
ConnectorApplication-specific connectors available
TubingPre-installed tubing or custom hose interface
BrandingOEM labeling and private branding
Technical drawings

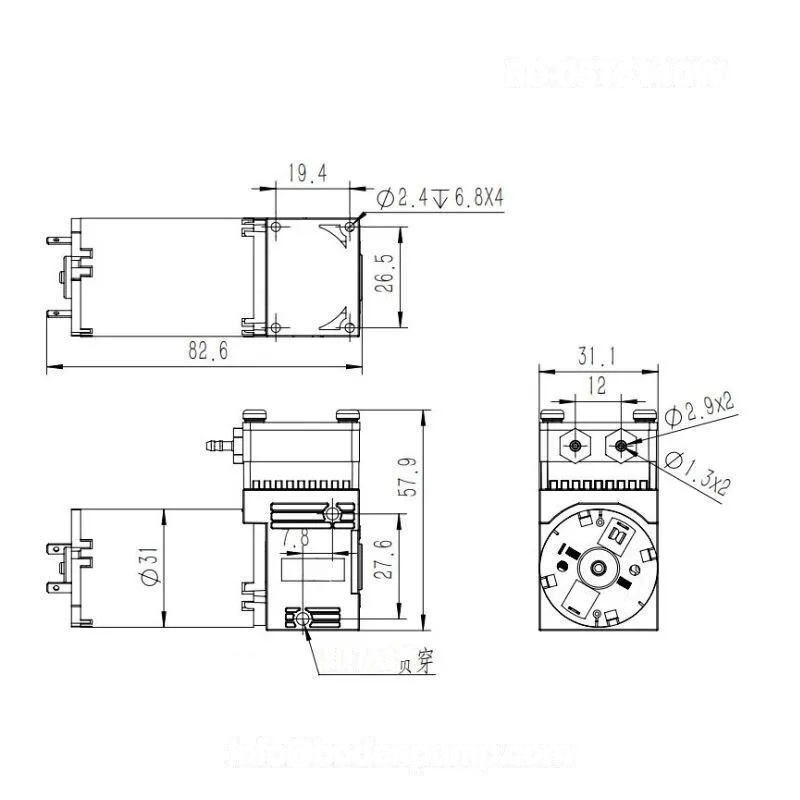

OD-05TF110W dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF110W application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 V / 12 V / 24 V
- Max Flow
- 110 mL/min (water), 3 L/min (gas)
- Max Vacuum
- -60 kPa
- Max Pressure
- 2.5 bar (water), 1 bar (gas)
Model comparison
OD-05TF110W and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF110W | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V; Max Flow 110 mL/min (water), 3 L/min (gas); Max Vacuum -60 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
