Application scenarios
Typical uses include water-based liquid transfer, dosing, recirculation and compact fluid handling in instruments or OEM equipment.
OD-05TF400WB

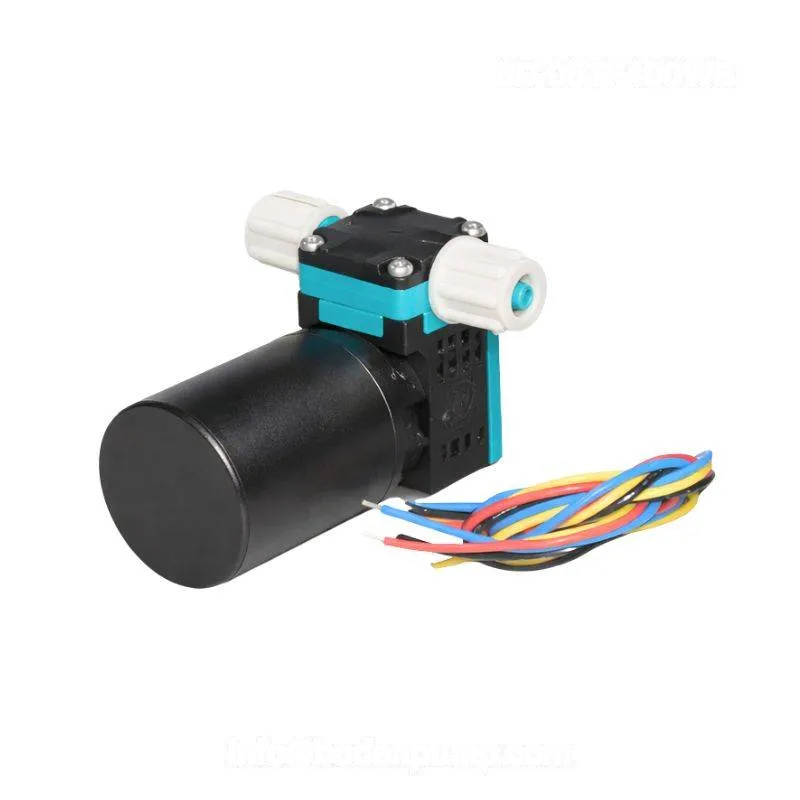

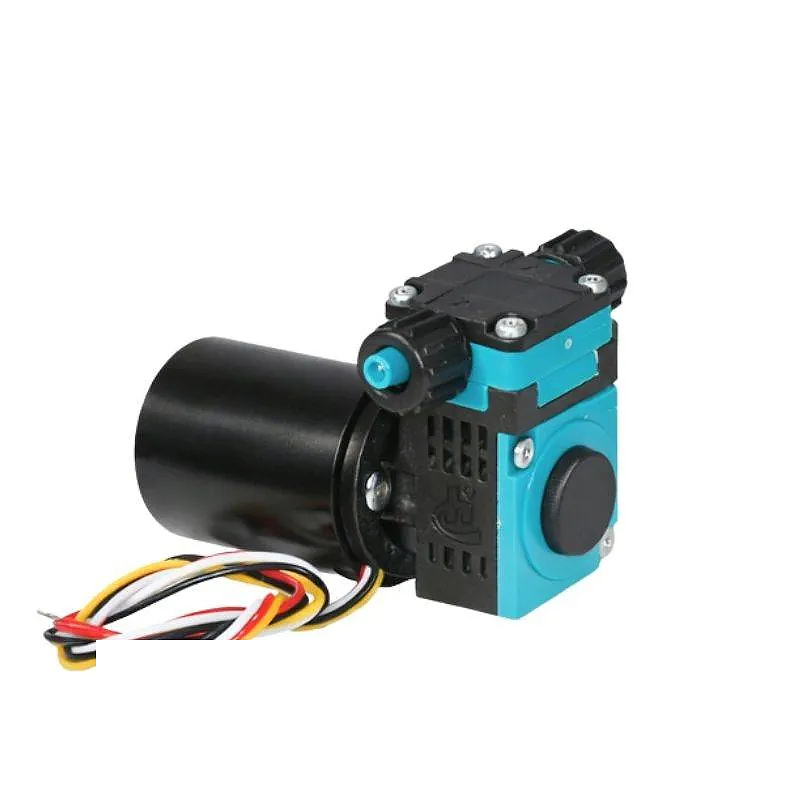

Miniature Gas-Liquid Mixed Pump 400 mL/min Solvent Ink Pump BLDC OD-05TF400WB JSG
Miniature gas-liquid mixed pump with 400 mL/min flow, oil-free brushless design, and OEM customization for solvent ink, sampling, and lab equipment.
Diaphragm liquid pumpOD-05TF400WB36 technical parameters2 technical drawings
Product functions
Key functions
OD-05TF400WB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
Product data
Technical specifications
The following specifications apply to OD-05TF400WB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 / 12 / 24 V
Max Flow400 mL/min (water), 0.4 L/min (gas)
Max Pressure6 bar (water), 70 kPa (gas)
Max Gas Vacuum-35 kPa
MotorDC Brushless Motor
Max Power5 W
Weight150 g
ModelOD-05TF400WB
TypeMicro Diaphragm Pump
StructureDiaphragm Pump
Voltage Range6 V / 12 V / 24 V DC
Free Water Flow400 mL/min (0.106 gpm)
Max Water Pressure6 bar (87 psi / 6000 mbar / 0.6 MPa)
Water Pressure Head>15 m
Water Suction Head4 m
Free Gas Flow0.4 L/min (0.014 cfm)
Max Gas Pressure70 kPa (0.7 bar / 700 mbar / 10.2 psi)
Max Gas Vacuum-35 kPa (-10.3 in.Hg / -350 mbar / -262 mmHg)
Motor TypeDC Brushless Motor
Noise55 dB
Service life8000 h
Speed Control Range0.5 V to 4.5 V
Dimensions66.1 × 54.2 × 42.1 mm (2.60 × 2.13 × 1.66 in)
Recommended Tubing SizeID4mm, OD6mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66 engineering plastic
DiaphragmEPDM
ValveEPDM
Customization ItemAvailable Options
Voltage6 V / 12 V / 24 V
MaterialsStandard PA66 / EPDM configuration, optional PPS head, PTFE diaphragm, FFPM valves for enhanced chemical resistance
WiringStandard lead wires or customized cable harness
Control SignalSpeed control input and FG signal output available
BrandingOEM label and product marking

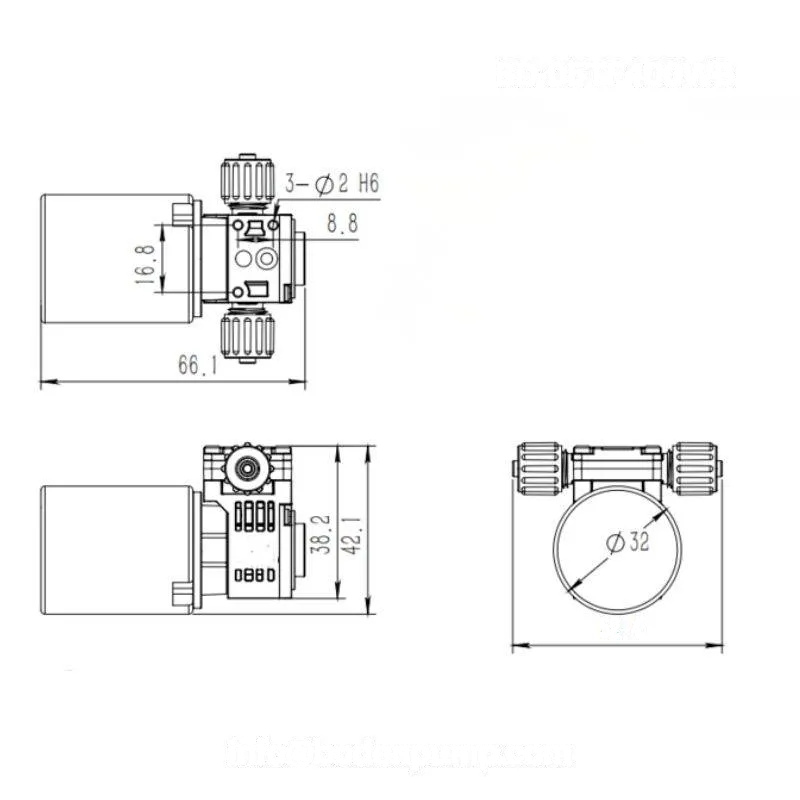

Technical drawings
OD-05TF400WB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF400WB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 / 12 / 24 V
- Max Flow
- 400 mL/min (water), 0.4 L/min (gas)
- Max Pressure
- 6 bar (water), 70 kPa (gas)
- Max Gas Vacuum
- -35 kPa
Model comparison
OD-05TF400WB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF400WB | Diaphragm liquid pump | Voltage 6 / 12 / 24 V; Max Flow 400 mL/min (water), 0.4 L/min (gas); Max Pressure 6 bar (water), 70 kPa (gas) | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TF400WB series. For 3D files matched to OD-05TF400WB, include the current model in the RFQ.
OD-05TF400WB Gas-Liquid Mixed Pump Datasheet (PDF)
Locally synchronized file, 149 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TF400WB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
