OD-07W

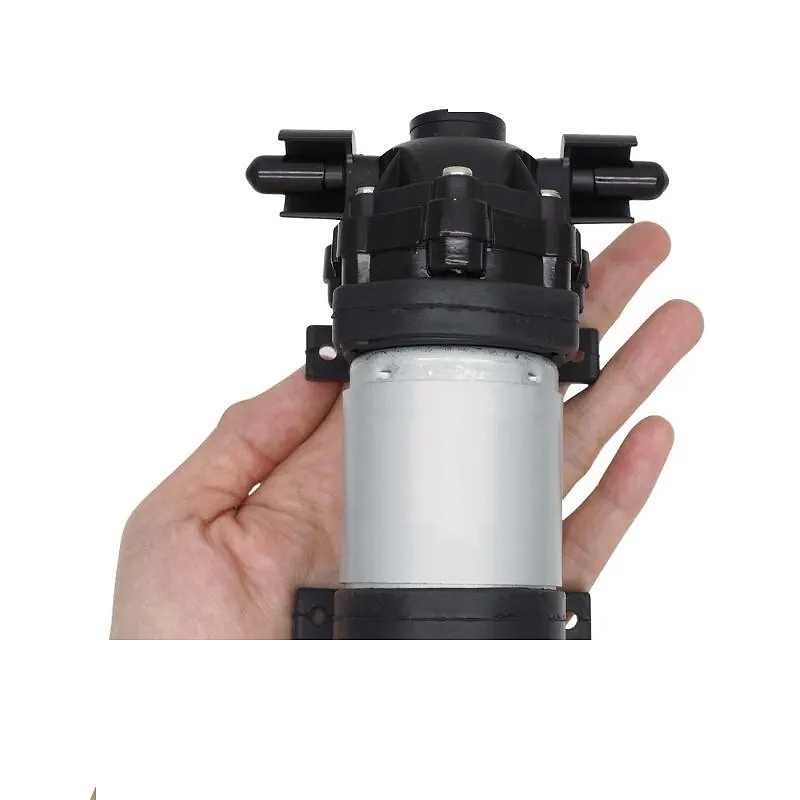

OD-07W 12V 24V Mini Diaphragm Water Pumps Water Purifier Pump Brush - JSG
OD-07W Mini Diaphragm Water Pump: 12V/24V, 24W, Max pressure 10bar, Max water flow 1L/min, 490g. Very quiet. Good for water purifier, beverage machine.
Diaphragm liquid pumpOD-07W5 technical parameters1 technical drawings
Product functions
Key functions
OD-07W supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
Product data
Technical specifications
The following specifications apply to OD-07W. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
VoltageDC 12V/24V
Max Pressure10bar
Air flow1.3L/min, 1.5L/min, 1L/min
Motorbrush/brushless
DiaphragmEPDM/Corrosion Resistance
Technical drawings

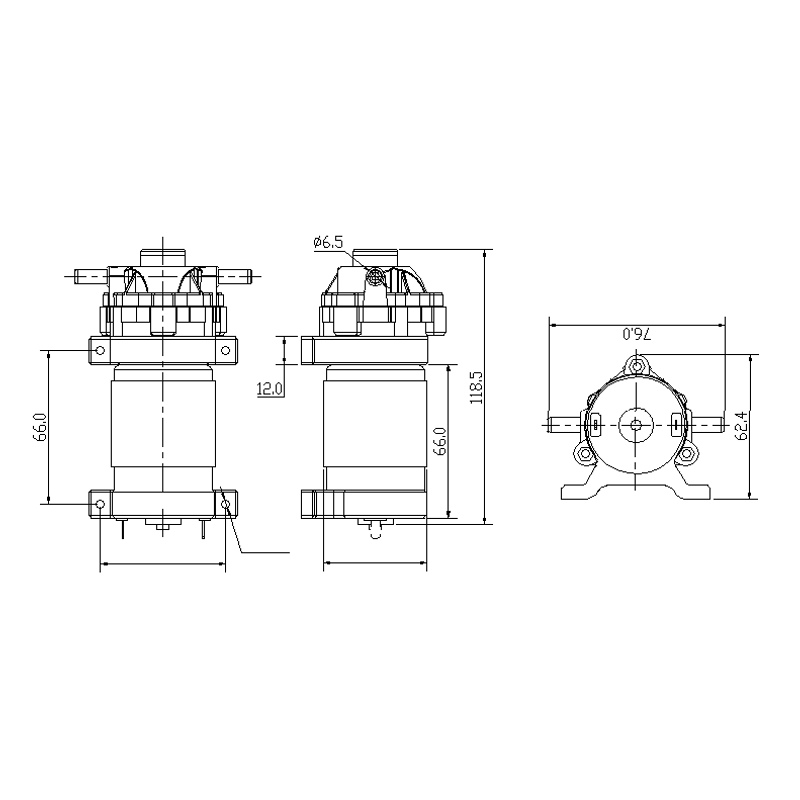

OD-07W dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-07W application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- DC 12V/24V
- Max Pressure
- 10bar
- Air flow
- 1.3L/min, 1.5L/min, 1L/min
- Motor
- brush/brushless
Model comparison
OD-07W and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-07W | Diaphragm liquid pump | Voltage DC 12V/24V; Max Pressure 10bar; Air flow 1.3L/min, 1.5L/min, 1L/min | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
