OD-05TF450WB
Precision Liquid Pump 450 mL/min Brushed Coding Machine Pump OD-05TF450WB JSG

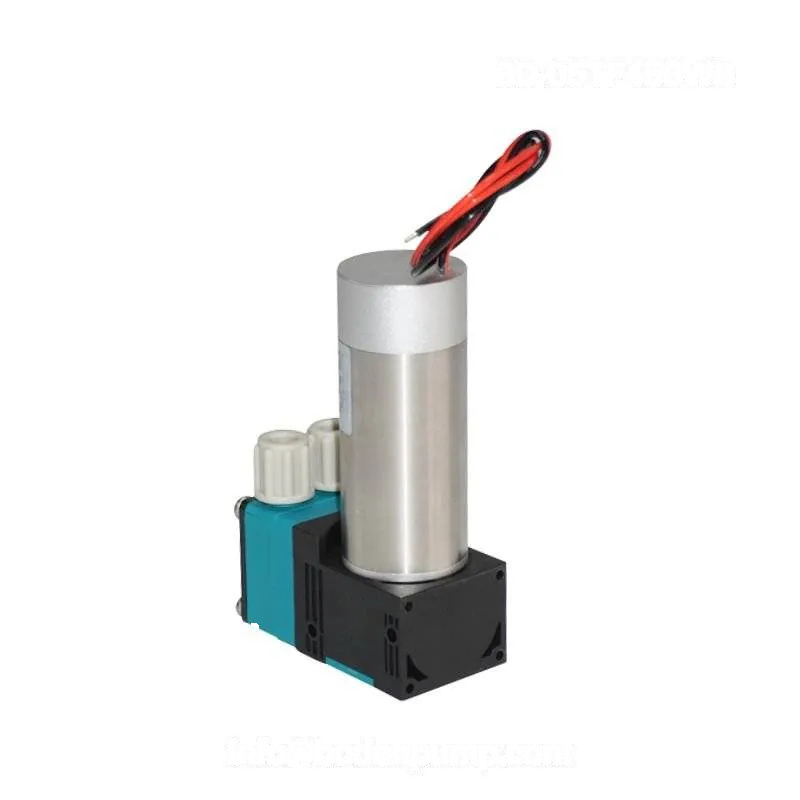

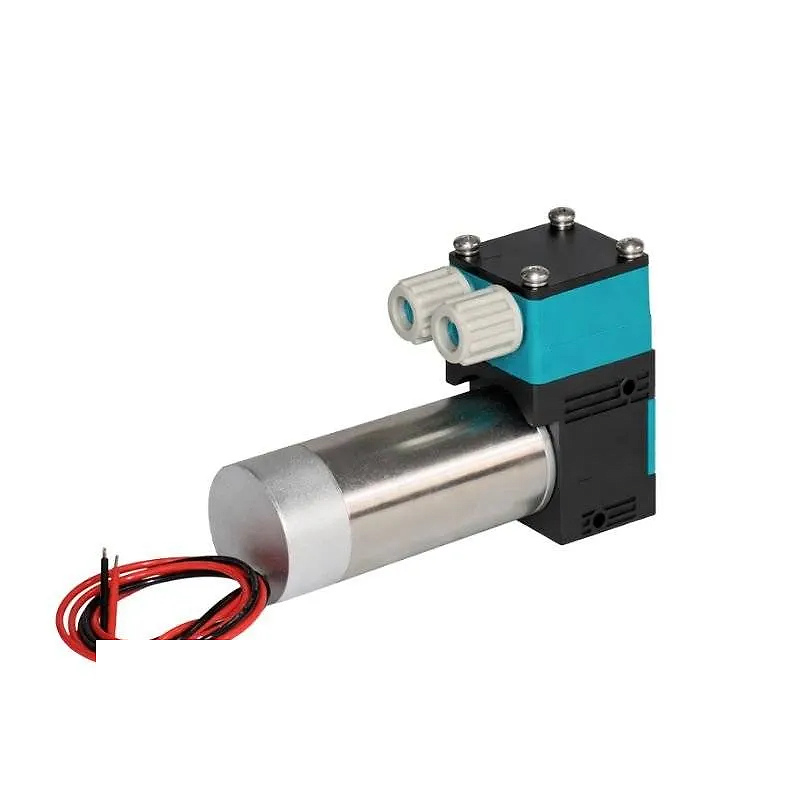

OD-05T450WB precision liquid pump for coding machines and OEM systems. Brushless diaphragm design with 450 mL/min flow for inkjet and analyzers.
Diaphragm liquid pumpOD-05TF450WB40 technical parameters2 technical drawings
Product functions
Key functions
OD-05TF450WB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Liquid transfer
Function 2Fluid circulation
Function 3Tubing-system integration
Product data
Technical specifications
The following specifications apply to OD-05TF450WB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6 V / 12 V / 24 V DC
Max Flow450 mL/min (water), 4 L/min (gas)
Max Vacuum-60 kPa
Max Pressure2.5 bar (water), 1 bar (gas)
MotorDC Brushless Motor
Max Power7 W
Weight200 g
ModelOD-05TF450WB
TypeSmall Liquid Pump
StructureDiaphragm Pump
Voltage Range6 V / 12 V / 24 V DC
Free Water Flow450 mL/min (0.119 gpm)
Max Water Pressure2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa)
Water Pressure Head>15 m
Water Suction Head7 m
Free Gas Flow4 L/min (0.141 cfm)
Max Gas Pressure1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Max Gas Vacuum-60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg)
Motor TypeDC Brushless Motor
Noise55 dB
Service life10000 h
Dimensions94 × 31.1 × 60.3 mm (3.70 × 1.22 × 2.37 in)
Recommended Tubing SizeID 4 mm, OD 6 mm
Ambient Temperature5°C to 40°C
Fluid Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66
DiaphragmEPDM
ValveEPDM
ItemCustomization Options
Voltage6 V / 12 V / 24 V DC selectable
Motor TypeBrushed / Brushless selection based on lifetime target
MaterialsEPDM / PTFE / FFPM for media compatibility
WiringCustomized length, color, and harness structure
ConnectorBare wire, plug-in, or waterproof connector
TubingID/OD adjustment for flow matching
BrandingOEM label and private branding support
MountingCustomized bracket or hole pattern
Control SignalPWM or analog speed control integration
Flow / PressureApplication-based performance calibration
Technical drawings

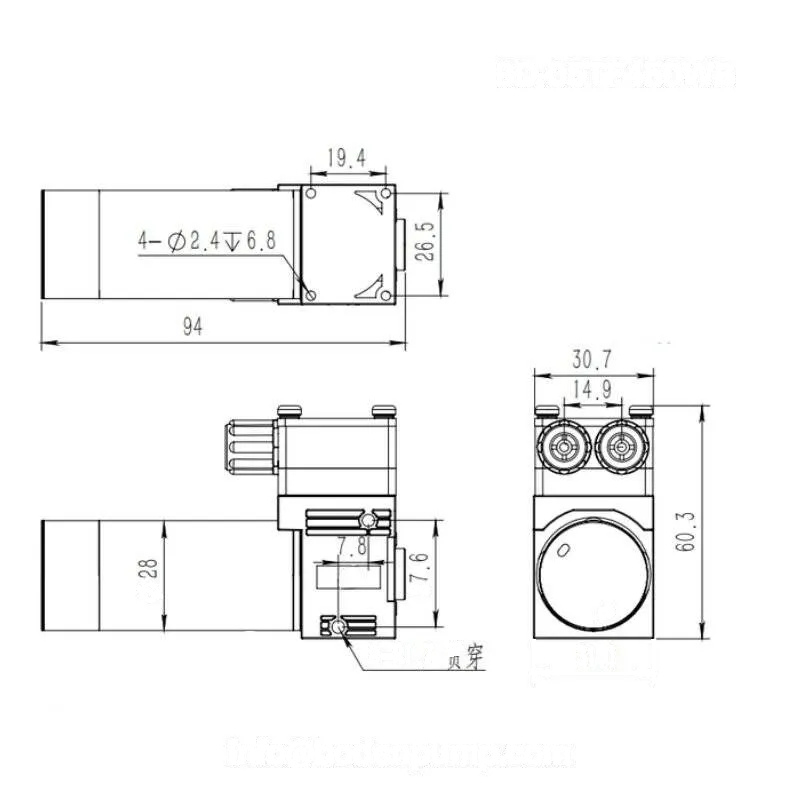

OD-05TF450WB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TF450WB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the target flow at the actual head or back pressure, then review tube length, valve loss, priming condition and whether the liquid path runs continuously or intermittently.
Noise, lifetime and voltage
Review wetted-material compatibility, temperature, concentration, voltage, duty cycle and leakage requirements before confirming the pump configuration.
- Voltage
- 6 V / 12 V / 24 V DC
- Max Flow
- 450 mL/min (water), 4 L/min (gas)
- Max Vacuum
- -60 kPa
- Max Pressure
- 2.5 bar (water), 1 bar (gas)
Model comparison
OD-05TF450WB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TF450WB | Diaphragm liquid pump | Voltage 6 V / 12 V / 24 V DC; Max Flow 450 mL/min (water), 4 L/min (gas); Max Vacuum -60 kPa | Current model |
| OD-05TF600W | Diaphragm liquid pump | Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa | View model |
| OD-05TF800WBD | Diaphragm liquid pump | Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum -50 kPa | View model |
| OD-05TF200W | Diaphragm liquid pump | Voltage 6/12/24V; Max Water Flow 200 mL/min; Max Water Pressure 8 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TF450WB series. For 3D files matched to OD-05TF450WB, include the current model in the RFQ.
OD-05TF450WB Gas-Liquid Mixed Pump Datasheet (PDF)
Locally synchronized file, 101 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TF450WB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
